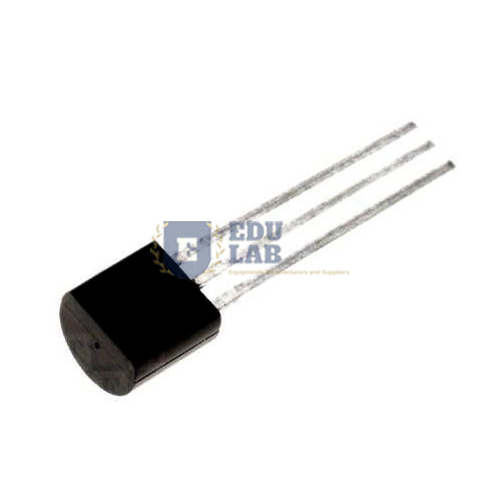

Temperature Sensor Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11826
Quick Answer: The Temperature Sensor gives an analog voltage output linearly proportional to Celsius temperature, at 10 mV per degree C, across an operating range of -40 to +125 degrees C.
Last updated: October 2026
Key Features
Analog output, 10 mV per degree C scale factor.
Operating range -40 to +125 degrees C.
Accuracy +/- 2 degrees C over temperature.
Linearity +/- 0.5 degrees C.
Supply 2.7 V to 5.5 VDC.
Technical Specifications
Specification
Value
Output
Analog voltage, linear in degrees C
Scale factor
10 mV per degree C
Operating range
-40 to +125 degrees C
Accuracy
+/- 2 degrees C over temperature
Linearity
+/- 0.5 degrees C
Supply voltage
2.7 to 5.5 VDC
About This Product
It senses the temperature of its surroundings and reports it as a voltage that changes in a straight line, 10 mV for each degree, over the whole operating range. The supply window of 2.7 V to 5.5 VDC lets it run from common low-voltage supplies.
Frequently Asked Questions
How accurate is it?
Accuracy is +/- 2 degrees C over temperature, with linearity of +/- 0.5 degrees C.
