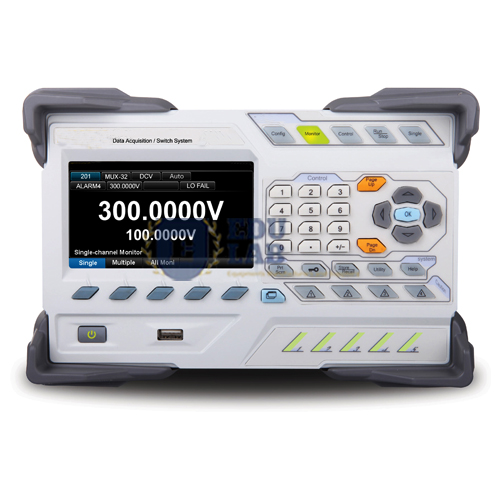

Data Acquisition / Switch System Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11835
Quick Answer: The Data Acquisition / Switch System is a modular mainframe that combines precision measurement with flexible signal switching, supporting up to 320 switch channels and 8 kinds of cards.
Last updated: October 2026
Key Features
Up to 320 switch channels per mainframe.
8 kinds of cards supported; the DMM can be enabled or disabled in any slot.
Interval scanning with storage of up to 100,000 time-stamped readings.
4.3 inch TFT LCD; runs without a PC.
USB logging, PC software and SCPI commands.
Built-in maths statistics: AVG, MAX, MIN and SDEV.
Technical Specifications
Specification
Value
Switch channels
Up to 320 per mainframe
Card types
8
Reading storage
Up to 100,000 time-stamped readings
Display
4.3 inch TFT LCD
Logging
USB
Commands
SCPI
Statistics
AVG, MAX, MIN, SDEV
About This Product
The system suits applications where many points or signals must be tested, both in product performance testing during R&D and in automatic testing during production. Scans can run at set intervals without a computer, with readings time-stamped and stored for later review or logged to USB.
Frequently Asked Questions
Does it need a PC to run?
No. It can be run without a PC using its 4.3 inch TFT LCD, while PC software and SCPI commands are available for computer control.
How many channels can it switch?
Up to 320 switch channels per mainframe, using any of the 8 kinds of supported cards.
