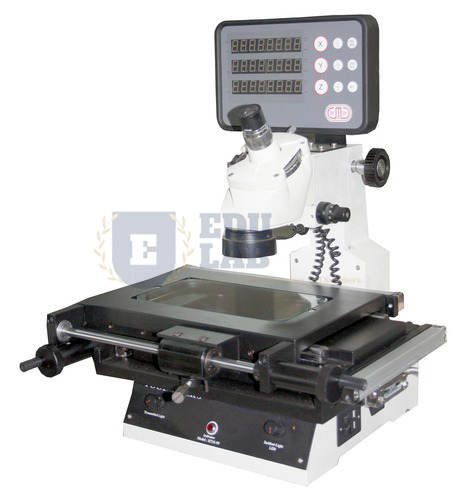

Large Tool Makers Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11003
Quick Answer: The Large Tool Makers Microscope measures angles, lengths, diameters and point-to-point distances on a 300 x 200 mm threadless stage with built-in linear scales reading to 0.001 mm.
Last updated: October 2026
Key Features
Threadless 300 x 200 mm stage with built-in linear scales, least count 0.001 mm.
X-Y table travel 100 x 50 mm; glass plate 200 x 100 mm.
WF 15x eyepiece with cross reticle and 2x achromatic objective, 30x standard magnification.
Eyepiece protractor graduated through 360 degrees with vernier reading to 6 minutes.
Monocular observation tube inclined at 30 degrees.
Transmitted halogen sub-stage light with collimated green filter, oblique LED ring illumination and a large, heavy base.
Technical Specifications
| Specification | Value |
|---|---|
| Stage | 300 x 200 mm, threadless, built-in linear scales |
| Least count | 0.001 mm |
| X-Y travel | 100 x 50 mm |
| Glass plate | 200 x 100 mm |
| Eyepiece | WF 15x, cross reticle |
| Objective | 2x achromatic |
| Magnification | 30x standard |
| Protractor | 360 degrees, vernier to 6 minutes |
About This Product
The cross reticle in the eyepiece is aligned with features on the part, and the stage scales or the eyepiece protractor give the distance or angle between them. Metal, plastic and electronic parts as well as automotive components can be checked, lit from below by the collimated halogen beam or obliquely by the LED ring, while the heavy base keeps the instrument rigid.
Frequently Asked Questions
What can be measured with the Large Tool Makers Microscope?
Angles, lengths, diameters and point-to-point distances on parts such as metal, plastic and electronic components and automotive parts.
How precise are the stage readings?
The built-in linear scales have a least count of 0.001 mm over an X-Y travel of 100 x 50 mm.
How are angles read?
Through the eyepiece protractor, graduated in 360 degrees with a vernier reading to 6 minutes and coupled to the monocular tube.
