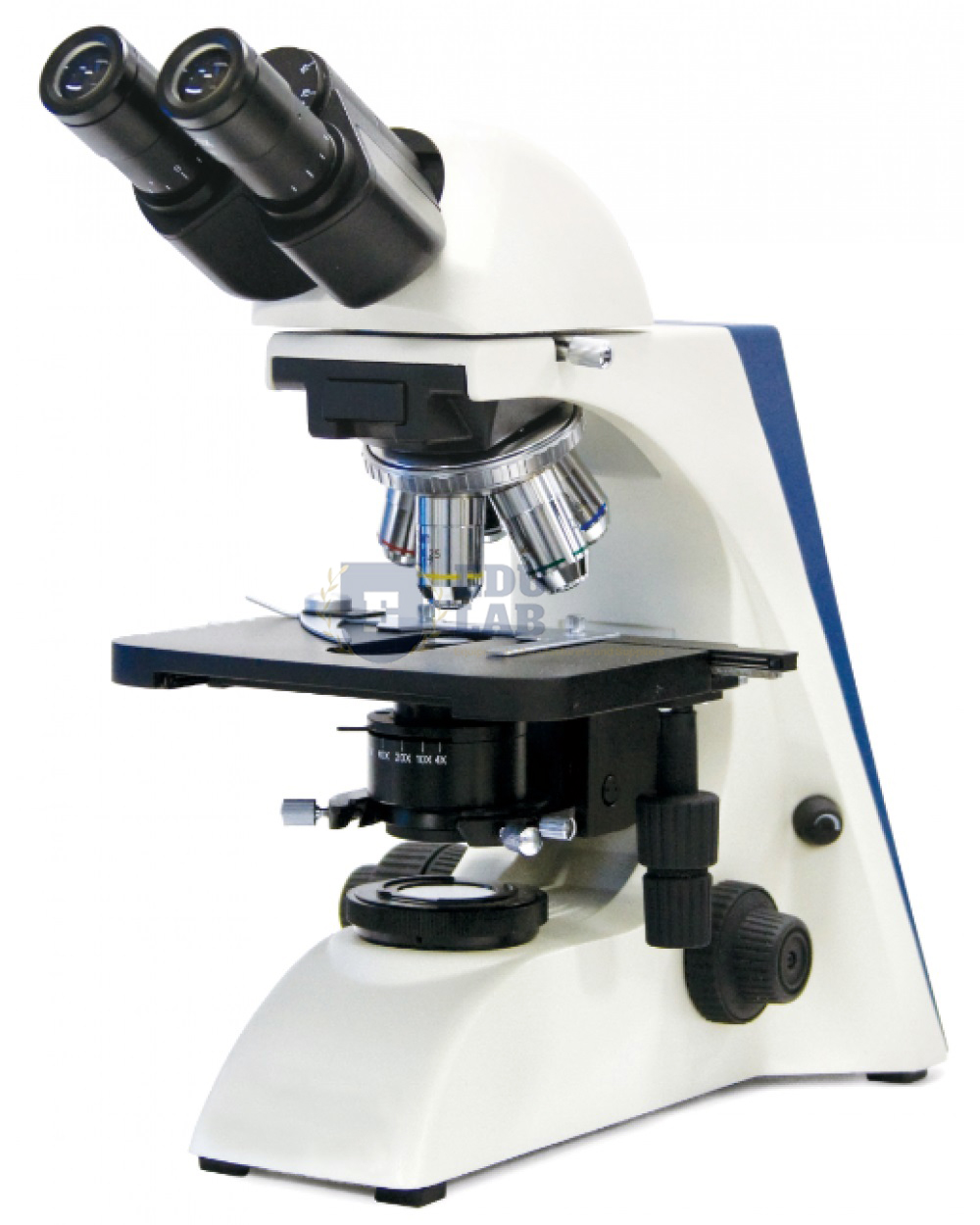

Infinity Corrected Binocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11019
Quick Answer: The Infinity Corrected Binocular Microscope pairs a 30-degree inclined, 360-degree rotatable binocular head with a quadruple nosepiece on ball bearings and a 145 x 140 mm double-layer mechanical stage.
Last updated: October 2026
Key Features
Reversed quadruple nosepiece for four colour-coded, parcentred and parfocal objectives, with ball bearings and internal click stops.
Low-position coaxial coarse and fine focus on both sides: 26 mm coarse stroke, 2 micrometre fine graduation and tension adjustment.
Built-in double-layer mechanical stage, 145 x 140 mm, with calibrated X/Y travel of 7.6 x 5.2 cm and a holder for two slides.
N.A. 1.25 Abbe condenser on rack and pinion, with an iris diaphragm graduated for each objective.
WF10x/20mm eyepieces with diopter on the left tube; 3W LED with intensity control.
Cast aluminium one-piece arm and base with integrated carrying handle; antifungal-treated against fungal growth.
Technical Specifications
| Specification | Value |
|---|---|
| Viewing head | Binocular, 30 degree inclined, 360 degree rotatable |
| Interpupillary distance | 50–75 mm |
| Eyepieces | WF 10x/20 mm, diopter on left tube |
| Nosepiece | Reversed quadruple, ball bearing, click stops |
| Focusing | Coaxial coarse and fine; 26 mm coarse stroke; 2 micrometre fine graduation; 19 mm range |
| Stage | 145 x 140 mm double layer mechanical; 7.6 x 5.2 cm travel |
| Condenser | Abbe, N.A. 1.25, rack and pinion, iris diaphragm |
| Illumination | 3W LED with intensity control |
| Stand | Cast aluminium, one-piece arm and base, carrying handle |
About This Product
The binocular head keeps the eyepiece tube length unchanged while the interpupillary distance is set anywhere from 50 to 75 mm, so each user can adjust it to their eyes. A graduated iris diaphragm in the condenser shows roughly where to set the aperture for each objective, helping with contrast and depth of field, and the rectangular cast aluminium frame keeps vibration low. Educational Lab Equipments can supply and export the Infinity Corrected Binocular Microscope to Bangladesh, Iceland, Brunei, São Tomé and Príncipe and Eswatini.
Frequently Asked Questions
Can the microscope be used for measurement?
A reticule eyepiece with 0.1 mm scales is available as an option for measuring work; it is not included as standard.
Does the image stay centred when changing objectives?
Yes. The quadruple nosepiece has internal click stops, and the four colour-coded objectives are parcentred and parfocal, so the image stays centred after each change of magnification.
How is the light adjusted?
A 3W LED with intensity control lights the specimen, and the N.A. 1.25 Abbe condenser is raised or lowered by rack and pinion. Its iris diaphragm carries a scale matched to the objectives.
Related: Microscopes, Advanced Infinity Corrected Binocular Microscope, Infinity Corrected Digital Trinocular Microscope, LED Kohler Illumination Binocular Microscope.
For a quotation on the Infinity Corrected Binocular Microscope, contact Educational Lab Equipments.
