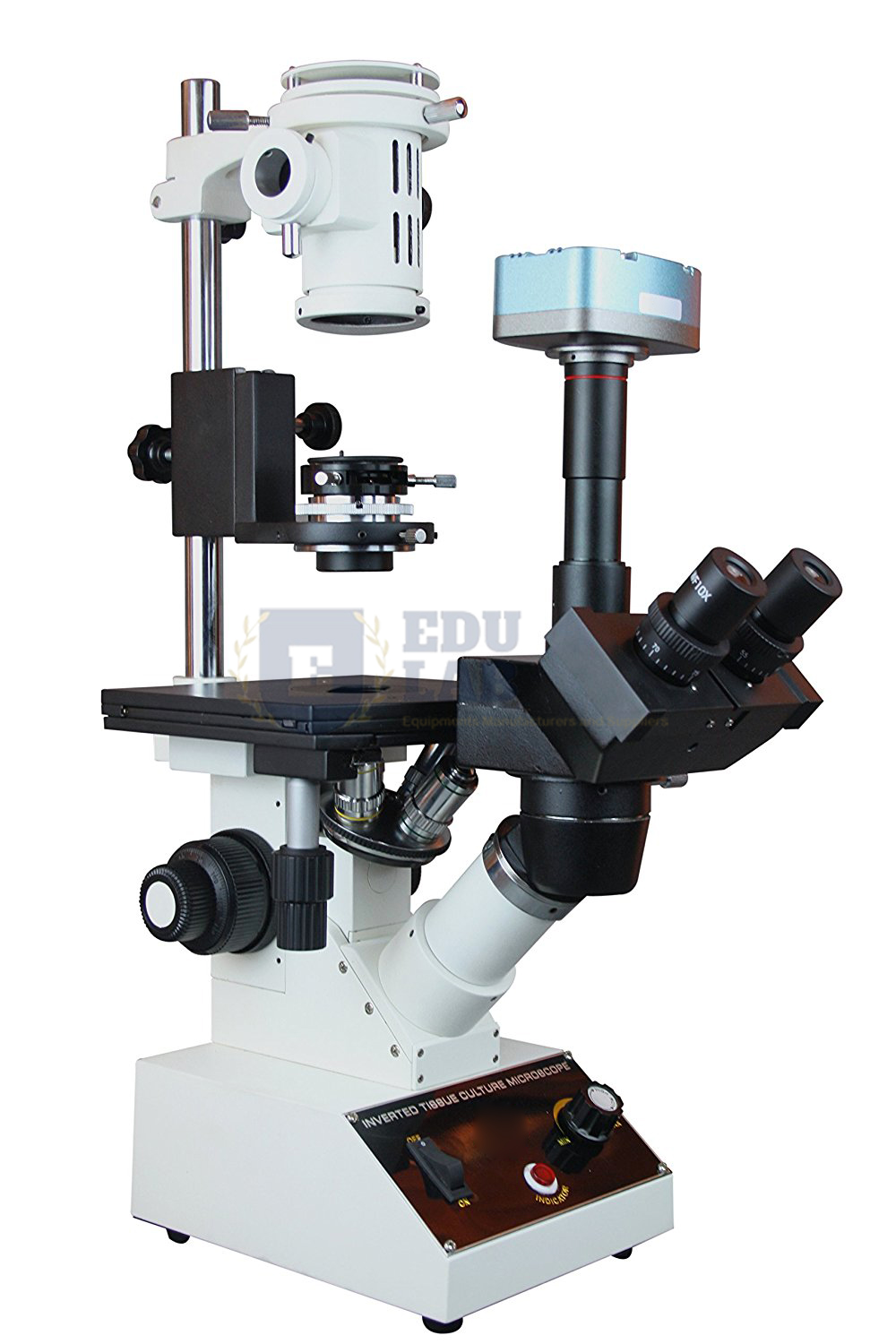

Trinocular Inverted Tissue Culture Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10994
Quick Answer: The Trinocular Inverted Tissue Culture Microscope has a Siedentopf trinocular head, a 12V/20W halogen illuminator and long-working-distance plan objectives from 4x to 40x, with phase objectives at 10x and 20x.
Last updated: October 2026
Key Features
Siedentopf trinocular head with diopter ring on the ocular tube; interpupillary distance 48–75 mm.
Paired EWF 10x eyepieces, field of view 18 mm.
Objectives LWD Plan 4x, LWD Plan phase 10x, 20x PH and LWD Plan 40x on a quadruple nosepiece.
Long-working-distance condenser, 45 mm, N.A. 0.35, with field diaphragm and pull-out filter socket.
12V/20W halogen lamp with spherical collector lens and continuous regulation.
Hard-coated mechanical stage 180 x 165 mm, movement 50 x 40 mm; blue, green and yellow glass filters.
Technical Specifications
| Specification | Value |
|---|---|
| Head | Siedentopf trinocular, diopter ring, IPD 48–75 mm |
| Eyepieces | EWF 10x, paired, FOV 18 mm |
| Objectives | LWD Plan 4x, LWD Plan phase 10x, 20x PH, LWD Plan 40x |
| Condenser | LWD 45 mm, N.A. 0.35, field diaphragm |
| Illuminator | 12V/20W halogen, spherical collector, continuous regulation |
| Stage | 180 x 165 mm, travel 50 x 40 mm |
| Filters | Blue, green, yellow glass |
About This Product
A long-working-distance condenser (45 mm) and LWD objectives are the core of this tissue culture set-up, with phase objectives at 10x and 20x alongside plan 4x and 40x. Focusing has a pre-focusing lever and tension adjustment ring, and the outfit arrives with cable, fuse, dust cover, operating manual, a 12V/20W halogen bulb and a moulded foam pack.
Frequently Asked Questions
What accessories come with the Trinocular Inverted Tissue Culture Microscope?
Standard accessories are an electric cable, fuse, dust cover, operating manual and a 12V/20W halogen bulb, packed in a moulded foam pack.
Which filters are supplied?
Blue, green and yellow glass filters.
How big is the stage?
The hard-coated mechanical stage measures 180 x 165 mm with a movement of 50 x 40 mm.
Related: Microscopes, Inverted Tissue Culture Microscope, Inverted Fluorescence Microscope, Tissue Culture Microscope.
For a quotation on the Trinocular Inverted Tissue Culture Microscope, contact Educational Lab Equipments.
