Datalogger Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11817
Quick Answer: The Datalogger collects data from laboratory tests with built-in sensors for voltage, current, temperature, luminosity, magnetic field and gas pressure, and accepts external sensors too. It works on its own with a graphic display and joystick or connected to a PC over USB.
Last updated: October 2026
Key Features
Built-in sensors: voltage, current, temperature, luminosity, magnetic field and absolute gas pressure.
4 analog inputs for internal sensors and 4 for external sensors.
12 bit conversion resolution, up to 1 MHz sampling per channel.
2 MB internal RAM for storing acquired data.
128 x 64 pixel graphic LCD and 5-key joystick for stand-alone use.
USB 2.0 full-speed interface (12 Mbps); powered from the PC or an external USB supply.
Technical Specifications
| Specification | Value |
|---|---|
| Built-in sensors | Voltage, current, temperature, luminosity, magnetic field, absolute gas pressure |
| Analog inputs | 4 for internal sensors, 4 for external sensors |
| Digital inputs | 3 |
| Analog outputs | 2 |
| Signal generator | Internal |
| Resolution | 12 bit |
| Max. sampling frequency | 1 MHz per channel |
| Memory | 2 MB RAM |
| Display | Graphic LCD, 128 x 64 pixels |
| Controls | 5-key joystick |
| Interface | USB 2.0 full speed, 12 Mbps |
| Power | Via USB from a PC or an external USB supply |
| Dimensions | 158 x 93 x 30 mm |
About This Product

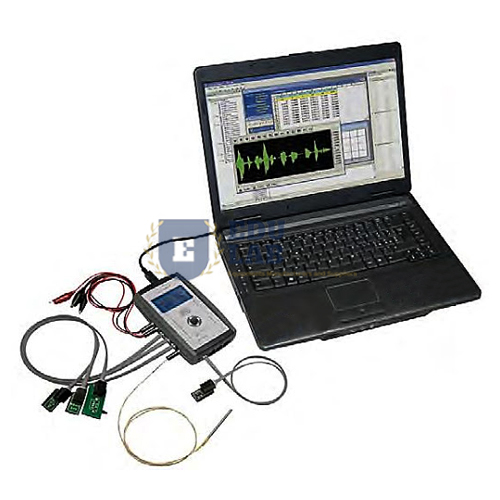

In stand-alone mode, quantities appear on the graphic display and commands are set with the joystick, so the logger can be used at the bench without a computer. Connected to a PC by USB, it passes data to the PC software for collection and processing. It also has two analog outputs and an internal signal generator.
Frequently Asked Questions
Can the Datalogger work without a computer?
Yes. In stand-alone mode the measured quantities are shown on the 128 x 64 pixel graphic display and commands are set with the 5-key joystick; readings are stored in the 2 MB internal RAM.
Can more sensors be added?
Yes. Besides its built-in sensors it has 4 analog inputs for external sensors, along with 3 digital inputs.
How is it powered?
Through USB when connected to a PC, or from an external USB power supply.
Related: Training Workshop Labs, Data Acquisition / Switch System, Charge Sensor, Acceleration Sensor.
For a quotation on the Datalogger, contact Educational Lab Equipments.
