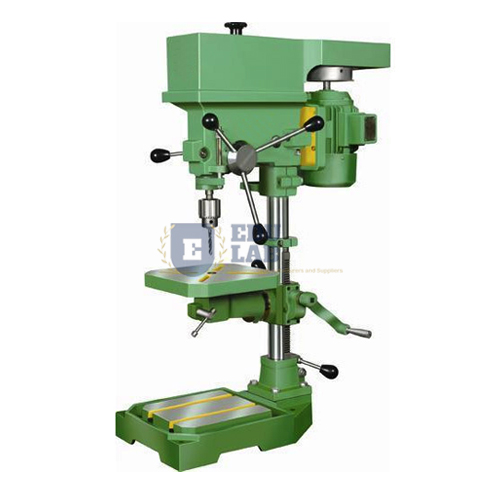

Drilling Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-WWPT-11696
Quick Answer: The Drilling Machine is a geared column drill with a 38 mm drilling capacity, 8 spindle speeds in either direction and 220 mm of spindle travel. Feed can be manual or powered, and the motor is rated 1.5–2.5 HP.
Last updated: October 2026
Key Features
Proportioned column for machine rigidity.
Main spindle of En steel with 6 slots; quill spacer of mild steel.
8 spindle speeds in either direction, with a window in the top cover for gear changes.
Rough and smooth feed by hand or by power feed.
Spindle sleeve guided in a honed bore on 6 ball and roller bearings.
Built from MS and CI.
Technical Specifications
Specification
Value
Drilling capacity
38 mm
Motor power
1.5–2.5 HP
Spindle travel
220 mm
Spindle speeds
8, in either direction
Feed
Manual and power, rough and smooth
Material
MS, CI
About This Product
The speed is chosen from the 8 gear settings and the spindle is fed either by hand or under power, at a rough or a smooth rate. Ball and roller bearings in the honed bore keep the spindle sleeve running smoothly and accurately, and the ground parts are finished on a grinding machine.
Frequently Asked Questions
What is the drilling capacity?
The machine drills up to 38 mm, with 220 mm of spindle travel and a motor rated 1.5–2.5 HP.
Can the spindle run in reverse?
Yes. It offers 8 spindle speeds in either direction.
Is power feed available?
Yes. Both rough and smooth feed are available by hand and by power feed.
