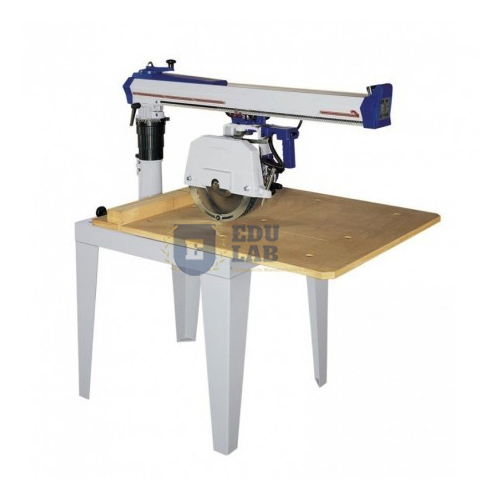

Radial Cross Cutting Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-WWPT-11701
Quick Answer: The Radial Cross Cutting Machine cross-cuts timber with a 12-inch (305 mm) or 14-inch (355 mm) blade driven by a 4.5 HP motor at 2900 rpm. It handles cross-cutting lengths up to 620 mm and trimming widths up to 860 mm.
Last updated: October 2026
Key Features
4.5 HP motor running at 2900 rpm.
Blade diameter 12 in (305 mm) or 14 in (355 mm) on a 1 in (25.4 mm) spindle bore.
Head runs on rails carried by 8 bearings.
Maximum trimming width 860 mm and cross-cutting length 620 mm.
Table area 900 x 1100 mm.
Technical Specifications
Specification
Value
Motor
4.5 HP, 2900 rpm
Blade diameter
305 mm (12 in) / 355 mm (14 in)
Spindle bore
25.4 mm (1 in)
Bearings for rails
8
Max trimming width
860 mm
Max cross cutting length
620 mm
Table area (L x W)
900 x 1100 mm
Machine size
1120 x 1100 x 1170 mm
Net weight
200 kg
About This Product
Boards are laid on the 900 x 1100 mm table and the head is pulled along its rails to cut across the grain. The head can also be swivelled and tilted for angled work, and 8 bearings carry it on the rails.
Frequently Asked Questions
What blade sizes does it take?
12-inch (305 mm) or 14-inch (355 mm) blades on a 1-inch (25.4 mm) spindle bore.
How long and how wide a cut can it make?
The maximum cross-cutting length is 620 mm and the maximum trimming width is 860 mm.
