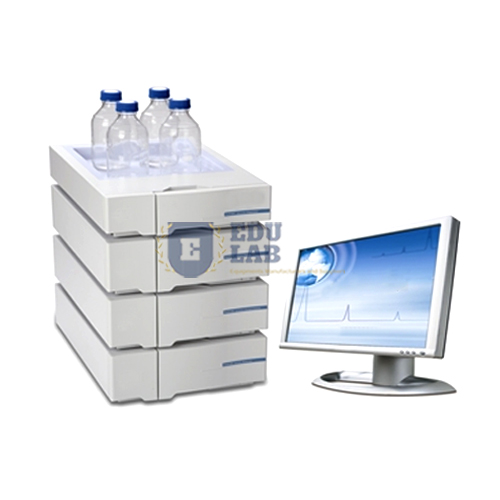

Liquid Chromatography Digital System Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11764
Quick Answer: The Liquid Chromatography Digital System is an HPLC set-up whose listed modules are quaternary and binary pumps, a 4-channel vacuum degasser, a column compartment from 4 to 90 degrees C, and UV/Vis, PDA and RI detectors. The UV/Vis detector covers 190 to 900 nm in dual-wavelength mode.
Last updated: October 2026
Key Features
Quaternary pump: parallel dual-plunger, low-pressure gradient from a 4-channel mixing valve, up to 4 solvents.
Binary pump: double parallel dual-plunger design for high-pressure gradients.
4-channel vacuum degasser with 925 microlitres internal volume per channel.
Column compartment from 4 degrees C (cooling) to 90 degrees C, taking up to 3 analytical or 2 semi-prep 30 cm columns.
UV/Vis (190 to 900 nm), 1024-channel PDA (190 to 950 nm) and RI (1.00 to 1.75 RIU) detectors.
Technical Specifications
| Specification | Value |
|---|---|
| Quaternary pump composition precision | Below 0.1% |
| Quaternary pump composition accuracy | Below 0.5% |
| Degasser flow | Max. 10 ml/min per channel; 70% gas removed from methanol at 0 to 2.0 ml/min per channel |
| Column temperature stability / accuracy | 0.05 / 0.5 degrees C |
| Column capacity | Up to 3 x 30 cm analytical or 2 x 30 cm semi-prep |
| UV/Vis data rate and linearity | Up to 50 Hz; above 99.5% at 2.5 AU (acetone, 254 nm) |
| PDA wavelength accuracy | 1 nm (holmium oxide filter) |
| RI flow cell volume | 9 microlitres analytical, 7 microlitres semi-prep |
| Solvent-contact materials (degasser) | PEEK and glass-filled PTFE |
About This Product
The system separates liquid samples by HPLC, with the quaternary pump blending up to 4 solvents at low pressure and the binary pump forming high-pressure gradients. Because the column compartment both cools and heats, separations can be run at a controlled temperature. Detection can be by UV/Vis at two wavelengths, by a 1024-channel photodiode array, or by refractive index.
Frequently Asked Questions
What wavelength range do the detectors cover?
The UV/Vis detector covers 190 to 900 nm with dual-wavelength operation, and the 1024-channel PDA detector covers 190 to 950 nm. The RI detector reads 1.00 to 1.75 RIU.
How many columns fit in the column compartment?
Up to 3 analytical or 2 semi-prep columns of 30 cm length. The compartment runs from 4 degrees C with cooling up to 90 degrees C.
What is the difference between the two pumps?
The quaternary pump uses parallel dual plungers with a low-pressure gradient from a 4-channel mixing valve for up to 4 solvents. The binary pump uses double parallel dual plungers to form a high-pressure gradient.
