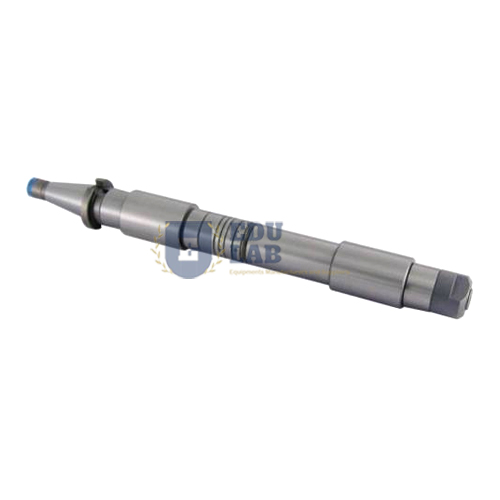

Long Milling Arbors Manufacturer,Supplier and Exporter in India
Product Code : EL-MMTM-11947
Quick Answer: Long Milling Arbors mount milling cutters on horizontal and universal milling machines and are forged from manganese chromium alloy steel hardened to 58–62 HRC. A full set comes with bearing bushes, spacers, nut and keys, and concentricity is held to 0.015–0.030 mm.
Last updated: October 2026
Key Features
Forged manganese chromium alloy steel, hardened to 58–62 HRC.
Made with various tapers, including BT and Morse tapers, to suit the machine spindle.
Full set includes bearing bushes, spacers, nut and keys.
Spacers position the cutters where required; bearing bushes fit into the machine brackets.
RH threads at the tightening end as standard, LH threads for specific requirements.
Concentricity of 0.015 mm to 0.030 mm.
Technical Specifications
| Specification | Value |
|---|---|
| Material | Forged manganese chromium alloy steel |
| Hardness | 58–62 HRC |
| Tapers | Various, including BT and Morse |
| Concentricity | 0.015 to 0.030 mm |
| Set contents | Bearing bushes, spacers, nut, keys |
| End threads | RH standard, LH on request |
About This Product
The drawbar in the spindle pulls the arbor in firmly, the machine brackets support it through the bearing bushes, and spacers set each cutter where it is needed. Shorter arbors are advised wherever the brackets allow, and the end thread should run against spindle rotation – LH threads for clockwise (RH) rotation, RH threads for anticlockwise (LH) – so the arbor does not loosen. To order, state the taper, length and threading. Colleges and TVET centres in Paraguay, Burkina Faso, Bangladesh, Malaysia, Solomon Islands and Mali can source the Long Milling Arbors from Educational Lab Equipments.
Frequently Asked Questions
What should be specified when ordering Long Milling Arbors?
The taper to suit the machine spindle, the length the milling machine brackets allow, and whether RH or LH end threads are needed for the spindle's direction of rotation.
What does a full set include?
Bearing bushes, spacers, a nut and keys come with a full set.
How hard are the arbors?
They are forged from manganese chromium alloy steel and hardened to 58–62 HRC, with concentricity of 0.015 to 0.030 mm.
Related: Metal Manufacturing Training Machine, Milling Arbor, Universal Milling Machine.
For a quotation on the Long Milling Arbors, contact Educational Lab Equipments.
