Center Gauge Manufacturer,Supplier and Exporter in India
Product Code : EL-MMTM-11940

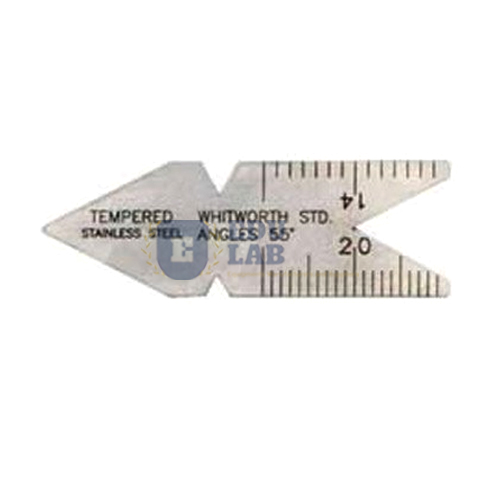

Quick Answer: Made of spring-tempered steel with a satin chrome finish, the Center Gauge is used for grinding and setting screw-cutting tools. Etched scales in 14ths, 20ths, 24ths and 32nds of an inch help find the number of threads per inch.
Last updated: October 2026
Key Features
Spring-tempered steel with satin chrome finish.
Measurement graduations of 1/24 in and 1/32 in.
Etched graduations in 14ths, 20ths, 24ths and 32nds of an inch.
Scale for finding the number of threads per inch.
For grinding and setting screw-cutting tools.
Technical Specifications
Specification
Value
Material
Spring-tempered steel
Finish
Satin chrome
Measurement graduations
1/24 in, 1/32 in
Thread-count graduations
14ths, 20ths, 24ths, 32nds of an inch
About This Product
Toolroom and lathe work both call on it: the gauge guides the grinding of a screw-cutting tool and then helps set that tool in position before a thread is cut. Its etched scales double as a quick way to count threads per inch on an existing part.
Frequently Asked Questions
What is the Center Gauge used for?
Grinding and setting screw-cutting tools, and finding the number of threads per inch with its etched scales.
Which graduations does it carry?
Measurement graduations of 1/24 and 1/32 inch, plus etched graduations in 14ths, 20ths, 24ths and 32nds of an inch.
