Light Box and Optical Set Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10960

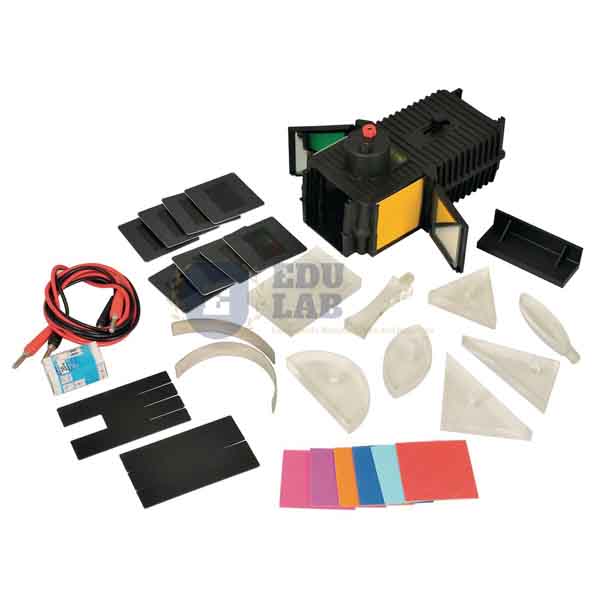

Quick Answer: The Light Box and Optical Set pairs a matt black 170 x 90 x 55 mm light box, fitted with a 12 V 36 W axial filament lamp, with Perspex lenses and blocks, a plane mirror, filters, cards and slit plates for reflection, refraction and colour mixing.
Last updated: October 2026
Key Features
Light box 170 x 90 x 55 mm, matt black, with 12 V 36 W S.B.C. axial filament lamp and 0.75 m twin flex.
Cylindrical convex lens in an adjustable sliding mount at one end for parallel, convergent or divergent beams.
Triple aperture at the other end, the side apertures with adjustable hinged mirrors, for colour mixing.
Vertical channels at every aperture for slit plates and colour filters.
Cylindrical Perspex lenses, Perspex blocks and prisms, and a plane glass mirror on a stand.
Eight colour filters, eight coloured cards, black plastic slit plates with narrow and wide slits, and a spare lamp.
Technical Specifications
| Specification | Value |
|---|---|
| Light box size | 170 x 90 x 55 mm |
| Lamp | 12 V 36 W S.B.C. axial filament, spare included |
| Flex | 0.75 m twin flex |
| Lenses | Cylindrical Perspex: double concave, double convex, thick double convex |
| Mirror | Plane glass, mounted on stand |
| Perspex blocks | Rectangular, semi-circular, prisms 60 x 60 x 60, 90 x 60 x 30 and 90 x 45 x 45 degrees |
| Colour filters | 8: primary red, primary green, primary blue, cyan, violet, yellow, orange, magenta |
| Coloured cards | 8: red, green, blue, violet, orange, cyan, yellow, pink |
About This Product
Sliding the convex lens at one end turns the beam parallel, convergent or divergent for reflection and refraction work with the Perspex lenses, blocks and prisms. At the other end, three apertures with hinged side mirrors bring coloured beams together, so colour mixing can be shown with the eight filters, and coloured cards are supplied as well. The Light Box and Optical Set can be dispatched from India to Yemen, Cabo Verde, Qatar, Venezuela, Grenada and Turkmenistan.
Frequently Asked Questions
What lamp does the Light Box and Optical Set use?
A 12 V 36 W S.B.C. axial filament lamp with 0.75 m of twin flex; a spare lamp comes with the set.
Which prisms are included?
Perspex triangular prisms of 60 x 60 x 60, 90 x 60 x 30 and 90 x 45 x 45 degrees, plus rectangular and semi-circular Perspex blocks.
How is the beam adjusted?
A cylindrical convex lens in an adjustable sliding mount at one end produces a parallel, convergent or divergent beam.
