Pump Plate Machined Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10360

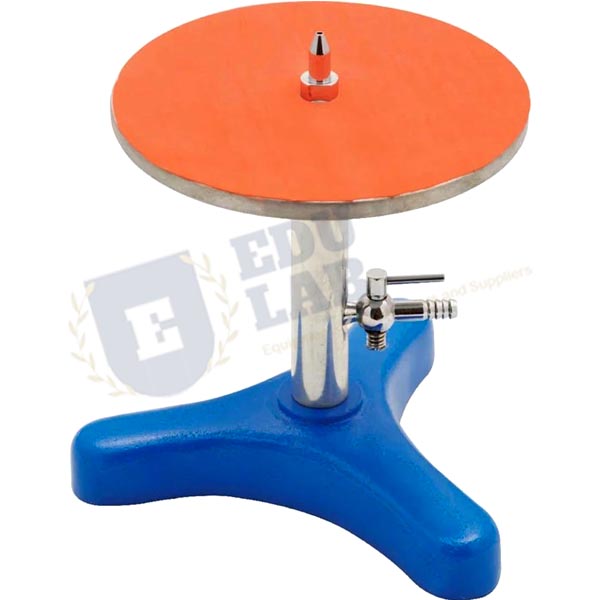

Quick Answer: The Pump Plate Machined is a 250 mm diameter aluminium plate for bell jar experiments, with a tube for connecting a pump and a stopcock on the central pillar to regulate air. A rubber seal is supplied to help seal the bell jar.
Last updated: October 2026
Key Features
Machined aluminium plate, 250 mm in diameter.
Tube on the central pillar for connection to a pump.
Stopcock for regulating air.
Rubber seal supplied for sealing the bell jar.
Mounted on a heavy, painted tripod base.
Technical Specifications
Specification
Value
Plate
Aluminium, 250 mm diameter
Pump connection
Tube on central pillar
Air control
Stopcock
Seal
Rubber
Base
Heavy painted tripod
About This Product
A bell jar placed on the plate is connected to the pump through the tube, and the stopcock regulates the air. The rubber seal helps keep the jar sealed against the plate while bell jar experiments are carried out.
Frequently Asked Questions
What is the plate made of?
It is made of aluminium, 250 mm in diameter, and is mounted on a heavy painted tripod base.
Is a seal included?
Yes, a rubber seal is supplied to help seal the bell jar in experiments.
