Flow Measurement By Rotameter Manufacturer,Supplier and Exporter in India
Product Code : EL-MACL-11618
Quick Answer: Flow Measurement By Rotameter is a recirculating water rig for calibrating a 0–500 LPH rotameter against the actual discharge collected in a measuring tank. A 0.5 HP self-priming motor runs the unit, with a 900 x 350 x 350 mm sump tank.
Last updated: October 2026
Key Features

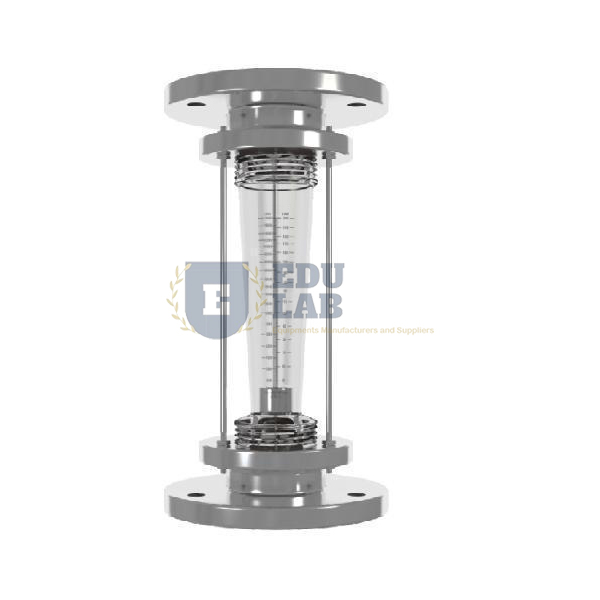

Rotameter, 0–500 LPH, on a pipe from the manifold.
Flow regulating valve to change the discharge.
Measuring tank 295 x 345 x 345 mm with transparent piezometer tube and scale.
Sump tank 900 x 350 x 350 mm.
0.5 HP self-priming motor for the recirculating unit.
Stop clock for timing the collection.
Technical Specifications
Specification
Value
Rotameter range
0–500 LPH
Measuring tank
295 x 345 x 345 mm
Sump tank
900 x 350 x 350 mm
Motor
0.5 HP, self priming
Level reading
Transparent piezometer tube with scale
Timing
Stop clock
About This Product
Students set a flow with the regulating valve, note the rotameter reading, and then time the rise in the measuring tank on the piezometer scale with the stop clock to find the actual discharge. Comparing the two over several valve settings calibrates the rotameter. The Flow Measurement By Rotameter can be dispatched from India to Bolivia, Armenia, France, Mauritania, Eritrea and Kuwait.
Frequently Asked Questions
How is the actual flow rate found?
Water is collected in the measuring tank and the rise is read on the transparent piezometer tube and scale, timed with the stop clock. The result is compared with the rotameter reading.
What is the rotameter's range?
The rotameter covers 0–500 LPH, and a flow control valve is used to change the discharge.
