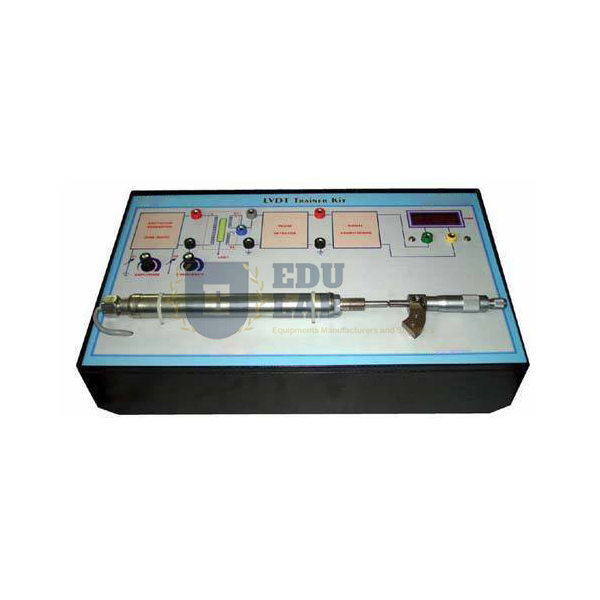

Displacement Measurement (LVDT) Manufacturer,Supplier and Exporter in India
Product Code : EL-MACL-11615
Quick Answer: Displacement Measurement (LVDT) is a demonstration set-up for measuring linear displacement with an LVDT sensor, read on a 3 1/2-digit indicator with a 0–20 mm range and 0.1 mm least count. A manual micrometer mechanism sets the displacement, and the same micrometer serves as the reference.
Last updated: October 2026
Key Features
LVDT sensor with signal conditioning circuit.
Manual micrometer-driven mechanism to vary the displacement.
Micrometer comparison scale as the reference.
Digital indicator: 3 1/2 digit, 0–20 mm range, 0.1 mm least count.
Powder-coated enclosure.
Technical Specifications
Specification
Value
Sensor
LVDT with signal conditioning
Indicator
3 1/2 digit
Range
0–20 mm
Least count
0.1 mm
Displacement drive
Manual micrometer mechanism
Enclosure
Powder coated
About This Product
Students turn the micrometer to set a known displacement, read the LVDT output on the digital indicator and compare it with the micrometer scale. Repeating this across the 0–20 mm range shows how closely the transducer follows the actual movement. Colleges and TVET centres in Turkmenistan, Barbados, Kenya, Costa Rica and Luxembourg can source the Displacement Measurement (LVDT) from Educational Lab Equipments.
Frequently Asked Questions
How is the LVDT reading checked?
The manual micrometer that drives the displacement also acts as the comparison scale, so each indicator reading can be compared with the actual micrometer setting.
What is the indicator's range and resolution?
The digital indicator is 3 1/2 digit, covers 0–20 mm and has a least count of 0.1 mm.
