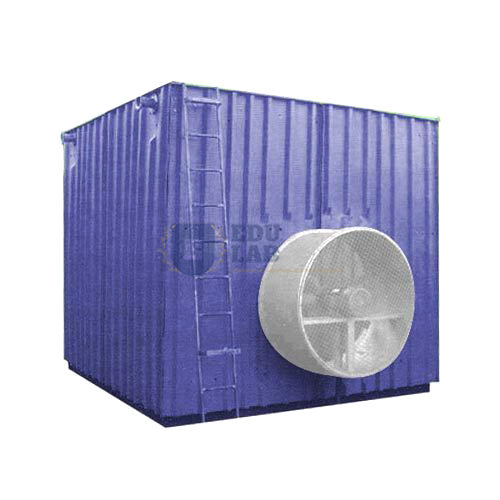

Forced Draught Cooling Tower Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11281
Quick Answer: The Forced Draught Cooling Tower is a 300 x 300 x 1200 mm test tower that can run under forced or induced draught, with a 1.1–11 LPM rotameter on the inlet water and a 12-channel temperature indicator.
Last updated: October 2026
Key Features
Tower size 300 mm x 300 mm x 1200 mm.
Runs in both forced and induced draught conditions.
Rotameter, 1.1–11 LPM, measuring inlet water flow.
Heater assembly.
Control panel with a 12-channel digital temperature indicator, main on/off switch for the blower and switches for pump, axial fan and heater.
Technical Specifications
Specification
Value
Tower size
300 x 300 x 1200 mm
Water flow measurement
Rotameter, 1.1–11 LPM
Temperature
12-channel digital indicator
Draught modes
Forced and induced
About This Product
Experiments are run at different air and water flow rates, and the results are used to work out the tower's efficiency in forced and induced draught and compare the two. The rig also gives the volumetric mass transfer coefficient (hd.a) for the air-water system and the temperature distribution along the tower height.
Frequently Asked Questions
Can the Forced Draught Cooling Tower also run as induced draught?
Yes. Experiments can be done in both induced and forced draught conditions, and the efficiency of the tower in each mode can be determined and compared.
What experiments does it support?
Tower efficiency in both draught modes, the volumetric mass transfer coefficient (hd.a) for the air-water system, and the temperature distribution along the height of the tower, at various air and water flow rates.
