Slip & Creep Measurement Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11380

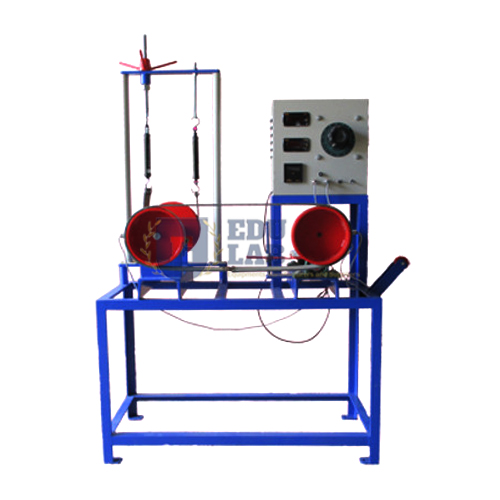

Quick Answer: The Slip & Creep Measurement Apparatus runs a flat belt between two equal-diameter pulleys driven by a 1 HP variable-speed DC motor, with a two-channel digital speed indicator showing the speed difference that reveals slip and creep.
Last updated: October 2026
Key Features
Variable-speed DC motor, 1 HP, 1500 RPM, with thyristor DC drive.
Flat driving and driven pulleys of equal diameter on input and output shafts.
Sliding bearing block and dead weight to set initial belt tension.
Brake drum with spring balance and rope for loading and power output.
Double-channel digital speed indicator for both pulley speeds.
Belt slip on the pulleys can be shown with a stroboscope (not supplied).
Technical Specifications
| Specification | Value |
|---|---|
| Motor | Variable speed DC, 1 HP, 1500 RPM |
| Speed control | Thyristor control DC drive |
| Pulleys | Flat, driving and driven of equal diameter |
| Belts | Flat, fixed length |
| Loading | Brake drum, spring balance and rope |
| Speed indication | Double-channel digital |
About This Product
Because both pulleys are the same size, any difference between their speeds under load comes from the belt slipping or creeping. Students set the belt tension with the dead weight, load the output through the brake drum and compare the two speed readings as load and tension change. Colleges and TVET centres in Egypt, Peru, Guinea-Bissau, Zimbabwe and Namibia can source the Slip & Creep Measurement Apparatus from Educational Lab Equipments.
Frequently Asked Questions
How is the belt tension changed?
The driven pulley's bearing block slides on the base, and a dead weight can be applied to set the initial tension in the belt.
Is a stroboscope included?
No. A stroboscope is not in the scope of supply, but with one the slip of the belt on the driving and driven pulleys can be demonstrated.
How is the system loaded?
A brake drum on the output shaft, with a spring balance and rope arrangement, loads the system and is used to measure power output.
