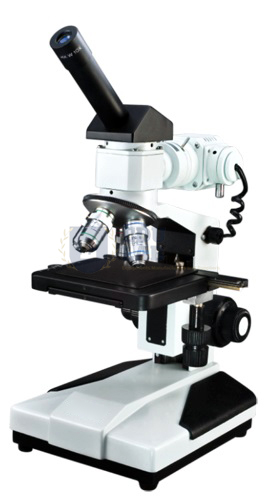

Monocular Upright Metallurgical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10989
Quick Answer: The Monocular Upright Metallurgical Microscope pairs a 45 degree inclined monocular head with achromatic M4x, M10x and M40x objectives and a 6V–20W halogen brightfield vertical illuminator.
Last updated: October 2026
Key Features
Monocular head, inclined at 45 degrees.
Halogen 6V–20W brightfield vertical illuminator with field diaphragm and filter slots.
Bulb-centring mechanism for aligning the lamp.
Achromatic M4x, M10x and M40x objectives on a quadruple revolving nosepiece with click stops.
H6x and WF10x eyepieces.
Large coaxial mechanical stage for X-Y specimen movement; coaxial focus knobs on both sides.
Technical Specifications
Specification
Value
Head
Monocular, 45 degree inclined
Objectives
Achromatic M4x, M10x, M40x
Eyepieces
H6x, WF10x
Nosepiece
Quadruple revolving, positive click stops
Stage
Large coaxial mechanical, X-Y
Focusing
Both-side coaxial knobs
Illuminator
Brightfield vertical, 6V–20W halogen, field diaphragm, filter slots
About This Product
Specimens rest on the large coaxial stage and are moved in X and Y while the vertical illuminator lights them in brightfield. Filters slide into the illuminator's slots, the field diaphragm limits the lit area, and the bulb-centring mechanism lines up the lamp with the optical path. The Monocular Upright Metallurgical Microscope can be dispatched from India to Chile, Philippines, South Korea, Democratic Republic of the Congo, Malawi and Solomon Islands.
Frequently Asked Questions
Which objectives are fitted to the Monocular Upright Metallurgical Microscope?
It uses achromatic M4x, M10x and M40x objectives on a quadruple revolving nosepiece with accurate centring and positive click stops.
How is focusing done?
With coaxial focusing knobs on both sides of the stand.
