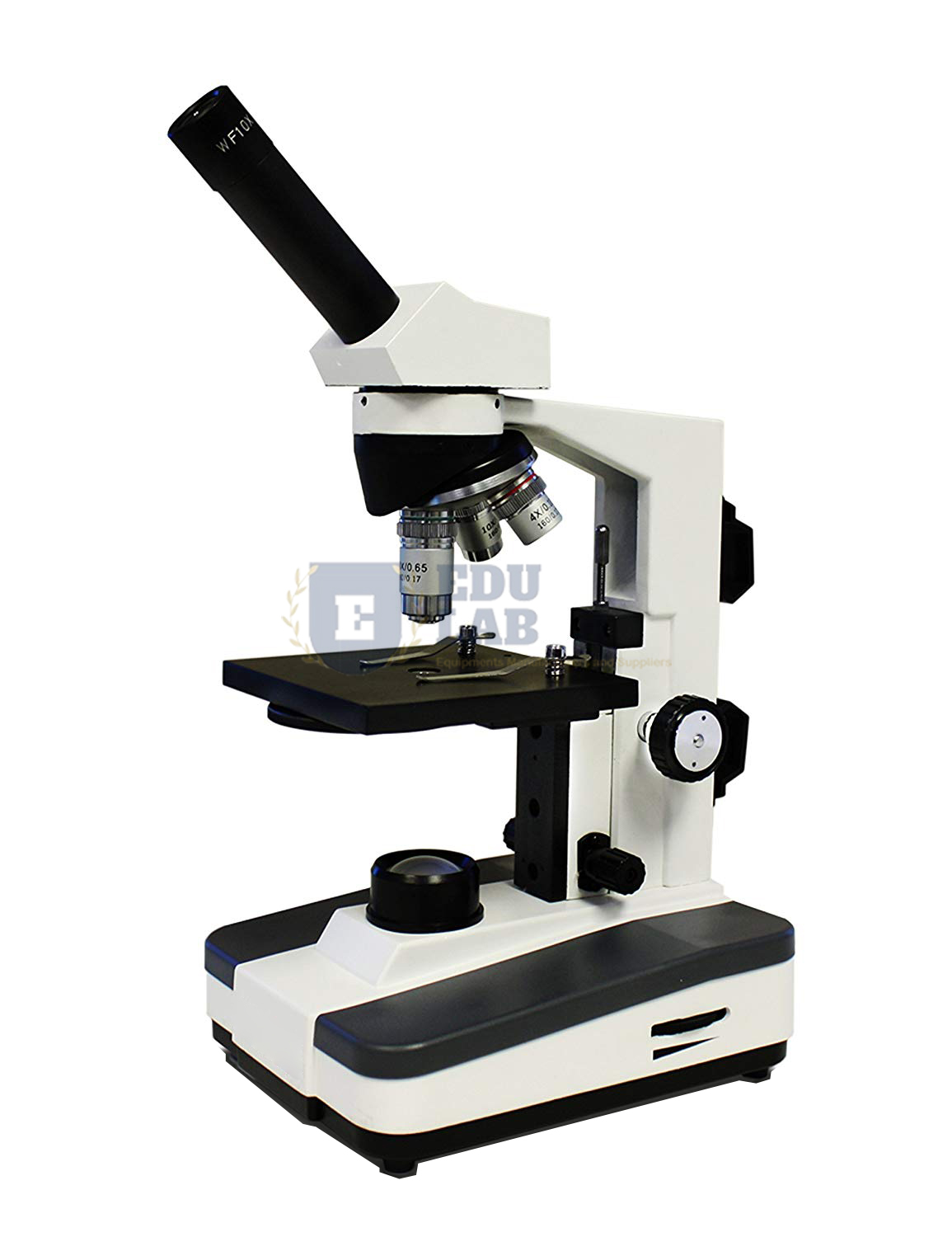

LED Kohler Illumination Monocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11017
Quick Answer: A monocular microscope covering 40X to 1000X, with corded LED illumination and an adjustable condenser diaphragm set up for Kohler illumination.
Last updated: October 2026
Key Features
Monocular head inclined at 45 degrees, rotating 360 degrees.
Double-layer, low-profile, ball-bearing mechanical stage with specimen holder.
Rack and pinion 1.25 NA Abbe condenser with turn-wheel iris diaphragm and plastic shield.
Corded LED illumination with light intensity control.
Eyepiece with calibrated pointer for marking and measuring points on a slide.
Magnification from 40X to 1000X.
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 40X to 1000X |
| Head | Monocular, 45-degree incline, 360-degree rotation |
| Condenser | Abbe, 1.25 NA, rack and pinion |
| Diaphragm | Iris, turn-wheel, with plastic shield |
| Stage | Built-in double-layer mechanical, ball-bearing |
| Illumination | Corded LED, intensity control |
About This Product
The built-in mechanical stage moves the specimen in fine, controlled steps, and the rack and pinion Abbe condenser with its iris diaphragm is used to tune resolution and contrast. With the calibrated pointer in the eyepiece, particular points on a slide can be marked, identified and measured. Educational Lab Equipments can supply and export the LED Kohler Illumination Monocular Microscope to Italy, Sri Lanka, Ecuador, Rwanda and Bahamas.
Frequently Asked Questions
What magnification range does this monocular microscope cover?
It covers 40X to 1000X, with the monocular head inclined at 45 degrees and rotating through 360 degrees.
Is the LED illumination corded or cordless?
Corded. It has light intensity control and works with an adjustable condenser diaphragm for Kohler illumination.
What condenser is fitted?
A 1.25 NA Abbe condenser on a rack and pinion, with a turn-wheel iris diaphragm protected by a plastic shield.
Related: Microscopes, LED Kohler Illumination Binocular Microscope, Advanced Monocular Research Microscope, Monocular Laboratory Microscope.
For a quotation on the LED Kohler Illumination Monocular Microscope, contact Educational Lab Equipments.
