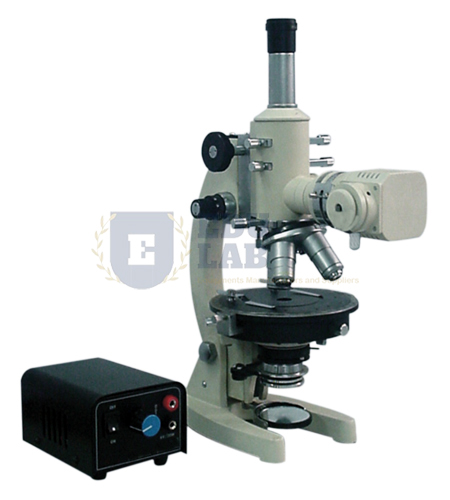

Laboratory Ore Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11000
Quick Answer: The Laboratory Ore Microscope has both transmitted and incident illumination, a 140 mm ball-bearing rotating stage graduated with a vernier, and an intermediate tube holding an analyser, gypsum and mica plates and a Bertrand lens.
Last updated: October 2026
Key Features
Transmitted light from a 50 mm plano-concave mirror on gimbal mount, interchangeable with a 15W sub-stage lamp for 220V or 110V.
Incident illuminator with pre-centred 20W tungsten halogen source and transformer with intensity control.
Ball-bearing rotating stage, 140 mm diameter, graduated with vernier, with lock and specimen clips.
Achromatic semi-plan objectives P-4x, P-10x and P-40x SL; separate coarse and fine focus knobs.
Intermediate tube with slide-out analyser, lambda gypsum plate, lambda/4 mica plate and Bertrand lens.
Fully rotatable polariser on a strain-free condenser, N.A. 1.25, with iris diaphragm.
Technical Specifications
| Specification | Value |
|---|---|
| Transmitted light | 50 mm plano-concave mirror or 15W sub-stage lamp, 220V/110V |
| Incident light | Pre-centred 20W tungsten halogen, intensity control |
| Stage | Rotating, ball bearing, 140 mm diameter, vernier |
| Objectives | Achromatic semi-plan P-4x, P-10x, P-40x SL |
| Eyepieces | WF-10x, H5 cross, H10x micro |
| Compensators | Gypsum plate 560 nm, mica plate 145 nm |
| Condenser | Strain-free, N.A. 1.25, iris, rotatable polariser |
About This Product
With incident light from the 20W tungsten halogen source and transmitted light from the mirror or sub-stage lamp, both opaque and transparent samples can be examined on the same rotating stage. Each slide in the intermediate tube locks in place and is pushed into the optical path only when it is needed. The Laboratory Ore Microscope can be dispatched from India to Republic of the Congo, Morocco, Somalia, Honduras, Zimbabwe and Eritrea.
Frequently Asked Questions
What compensators does the Laboratory Ore Microscope include?
A lambda gypsum plate (first-order red, 560 nanometres) and a lambda/4 mica plate (145 nanometres), held in the intermediate tube together with the analyser and Bertrand lens.
Which eyepieces are supplied?
A wide-field WF-10x eyepiece, an H5 cross eyepiece and an H10x micro eyepiece.
What supply voltages are catered for?
The sub-stage lamp and the incident illuminator's transformer are both offered for 220 V or 110 V input.
