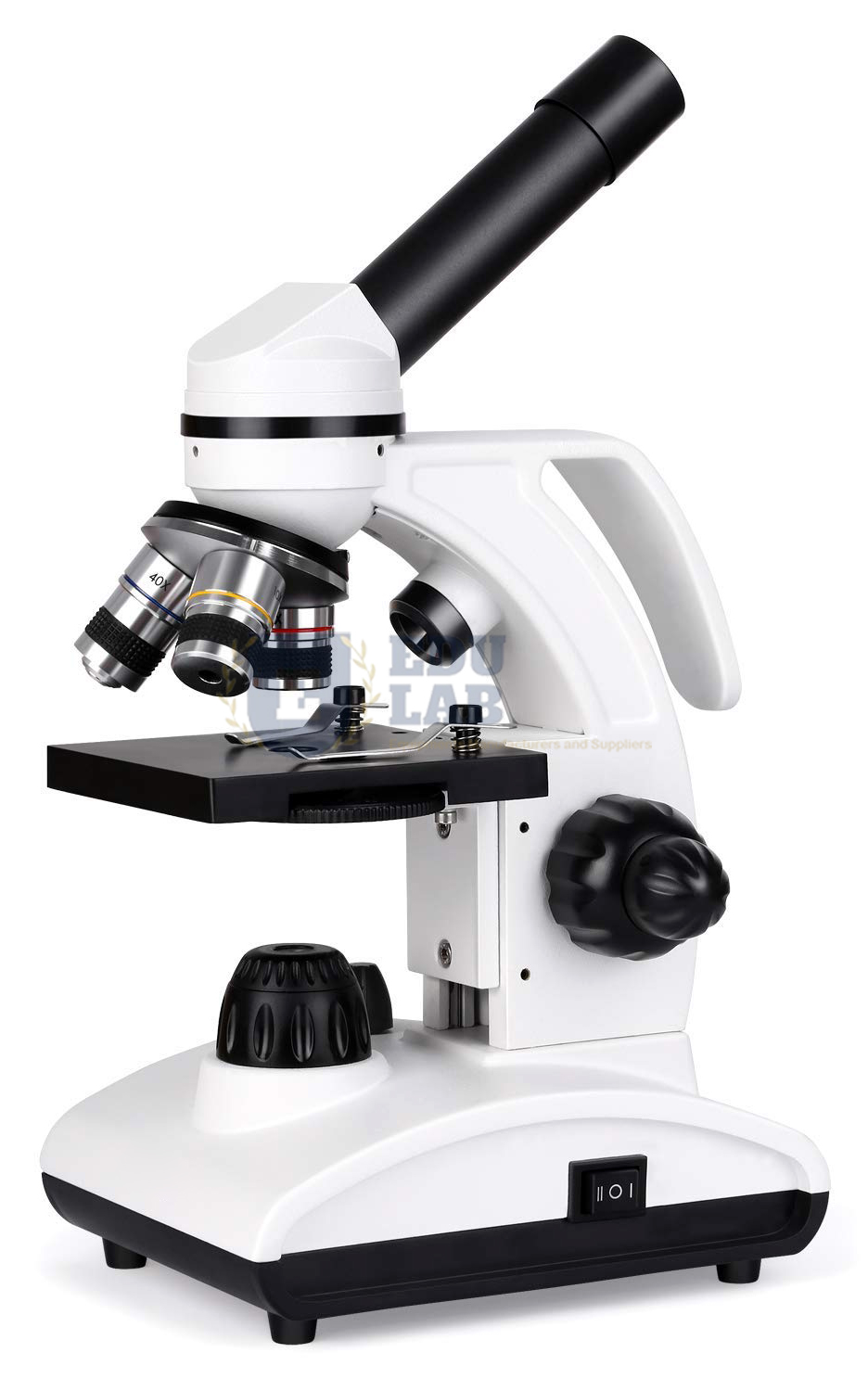

Cordless Compound Monocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11015
Quick Answer: A cordless compound monocular microscope with 4x, 10x and 40x full-glass achromatic objectives on a forward-facing nosepiece, plus interchangeable 10x and 25x widefield eyepieces.
Last updated: November 2026
Key Features
Forward-facing nosepiece carrying 4x, 10x and 40x full-glass achromatic objectives.
Interchangeable 10x and 25x widefield eyepieces.
Monocular head fixed at a 45-degree inclination and rotating 360 degrees for sharing.
Brightfield upper and lower LED illumination with rheostat control.
0.65 NA single-lens condenser with disc diaphragm.
Plain stage with slide clips and a stage stop; coaxial coarse and fine focus.
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | 4x, 10x, 40x achromatic, full glass |
| Eyepieces | 10x and 25x widefield, interchangeable |
| Head | Monocular, fixed 45-degree incline, 360-degree rotation |
| Condenser | Single lens, 0.65 NA, disc diaphragm |
| Illumination | Upper and lower LED, brightfield, rheostat |
| Stage | Plain, with clips and stage stop |
| Focus | Coaxial coarse and fine |
About This Product
Being cordless, it can be set up on any bench without a nearby socket. The upper and lower LEDs light a specimen from above or from below, and the rotating head lets students pass the view along without moving the microscope itself.
Frequently Asked Questions
Which eyepieces does the Cordless Compound Monocular Microscope accept?
It comes with interchangeable 10x and 25x widefield eyepieces, used with 4x, 10x and 40x achromatic objectives on a forward-facing nosepiece.
How is the specimen lit?
By brightfield LED illumination from above and below, adjusted with a rheostat and passed through a 0.65 NA single-lens condenser with a disc diaphragm.
Does the stage protect slides?
Yes. The plain stage has clips to hold the slide and a stage stop that keeps slides and objectives from being damaged.
What should I order with the Cordless Compound Monocular Microscope for a class set?
Add prepared slides, for example Chromosomes (400x) and Mouth Smear (400x), plus Slides Micro Concavity and Microscope Cover Slips for students' own mounts. Store slides flat in a Slide Holder.
How do students focus the Cordless Compound Monocular Microscope without damaging slides?
Start with the lowest-power objective, bring the stage up while watching from the side, then focus by moving the stage away from the lens; switch to higher power only after the image is sharp.
Related: Microscopes, LED Cordless Beginner Monocular Microscope, LED Cordless Dual View Microscope, Student Compound Microscope.
For a quotation on the Cordless Compound Monocular Microscope, contact Educational Lab Equipments.
