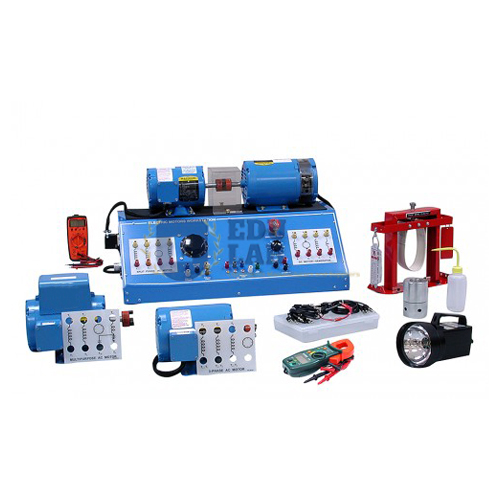

Electrical Machine System Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11246
Quick Answer: A modular electrical machine system of 300W-grade machines that helps students compare the mechanical similarities and differences between electrical machines, with PC-based measurement and curve drawing.
Last updated: October 2026
Key Features
300W-grade machines for learning the theory and characteristics of electrical machines.
Stand-alone machines with two shaft ends and an aluminium alloy base for coupling.
Brake with constant speed and constant torque functions; draws the complete T/N curve.
Microprocessor-based digital measuring instruments; PC link with measuring software that saves graphs.
Overload protection on each DC/AC supply; overheating protection on rotary machines and brake.
5 mm isolation bakelite panels with printed symbols, values and functions; 4 mm safety sockets and plugs.
Technical Specifications
| Specification | Value |
|---|---|
| Machine grade | 300 W |
| Machine base | Aluminium alloy, two shaft ends |
| Panels | 5 mm isolation bakelite, printed symbols |
| Connections | 4 mm safety sockets and plugs |
| Brake | Constant speed / constant torque |
| Measurement | Microprocessor-based digital, PC link |
About This Product
Each machine stands alone with a shaft at both ends, so it can be coupled to another machine on its aluminium alloy base and tested against the brake. The modular panels can be arranged to suit the experiment, and the PC software plots the characteristic curves and saves the graphs.
Frequently Asked Questions
Can the Electrical Machine System connect to a computer?
Yes. It connects to a PC for measuring and drawing characteristic curves, and its measuring software saves the graphs.
What modes does the brake offer?
Constant speed and constant torque, and it can draw the complete T/N curve.
How are the training panels made?
From 5 mm isolation bakelite with printed component symbols, values and functions, using 4 mm safety sockets and plugs.
