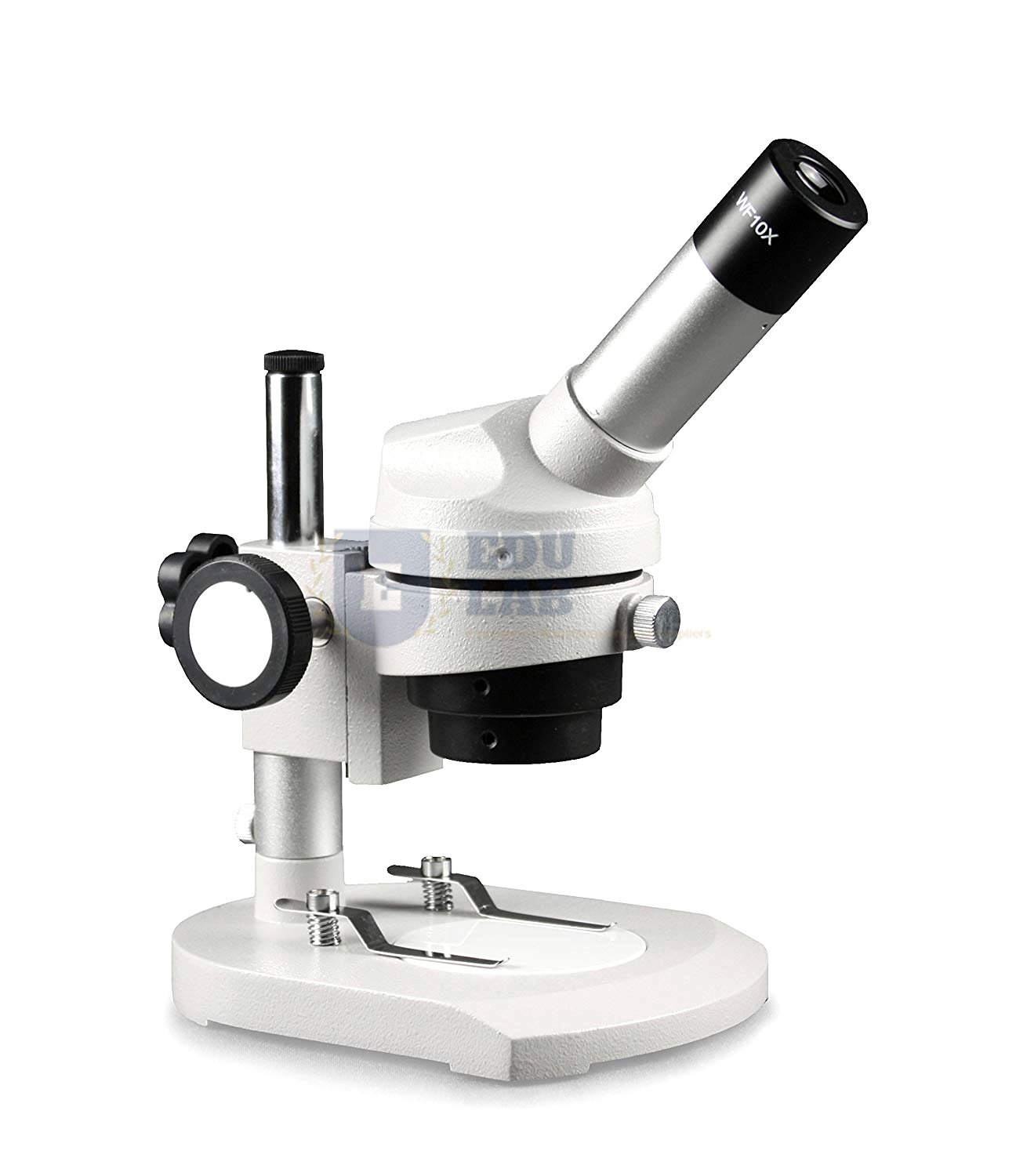

All Purpose Dissecting Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11010
Quick Answer: The All Purpose Dissecting Microscope gives an upright 20x image through a locked-on 10x wide-field eyepiece, with a 74 mm working distance and room for specimens up to 40 mm high.
Last updated: October 2026
Key Features
All-metal frame with locked-on eyepiece.
10x wide-field eyepiece, 20x magnification, large viewing field.
Upright image by indoor or natural light.
Large 14 x 11 cm stage with 60 mm black/white stage plate and mounted clips.
Working distance 74 mm; maximum specimen height 40 mm.
Monocular head inclined at 45 degrees, 360 degree rotation.
Technical Specifications
Specification
Value
Magnification
20x
Eyepiece
10x wide-field, locked-on
Working distance
74 mm
Maximum specimen height
40 mm
Stage
14 x 11 cm, 60 mm black/white plate
Head
Monocular, 45 degrees, 360 degree rotation
Frame
All metal
About This Product
The microscope is meant for young explorers, including outdoor field work, and works with indoor lighting or daylight. The black/white stage plate offers a dark or a light background, and the 74 mm gap below the optics leaves space for dissecting.
Frequently Asked Questions
What size of specimen fits under the All Purpose Dissecting Microscope?
Specimens up to 40 mm high, with a working distance of 74 mm on a 14 x 11 cm stage.
What lighting does it use?
Indoor or natural light, giving a clear, upright image.
