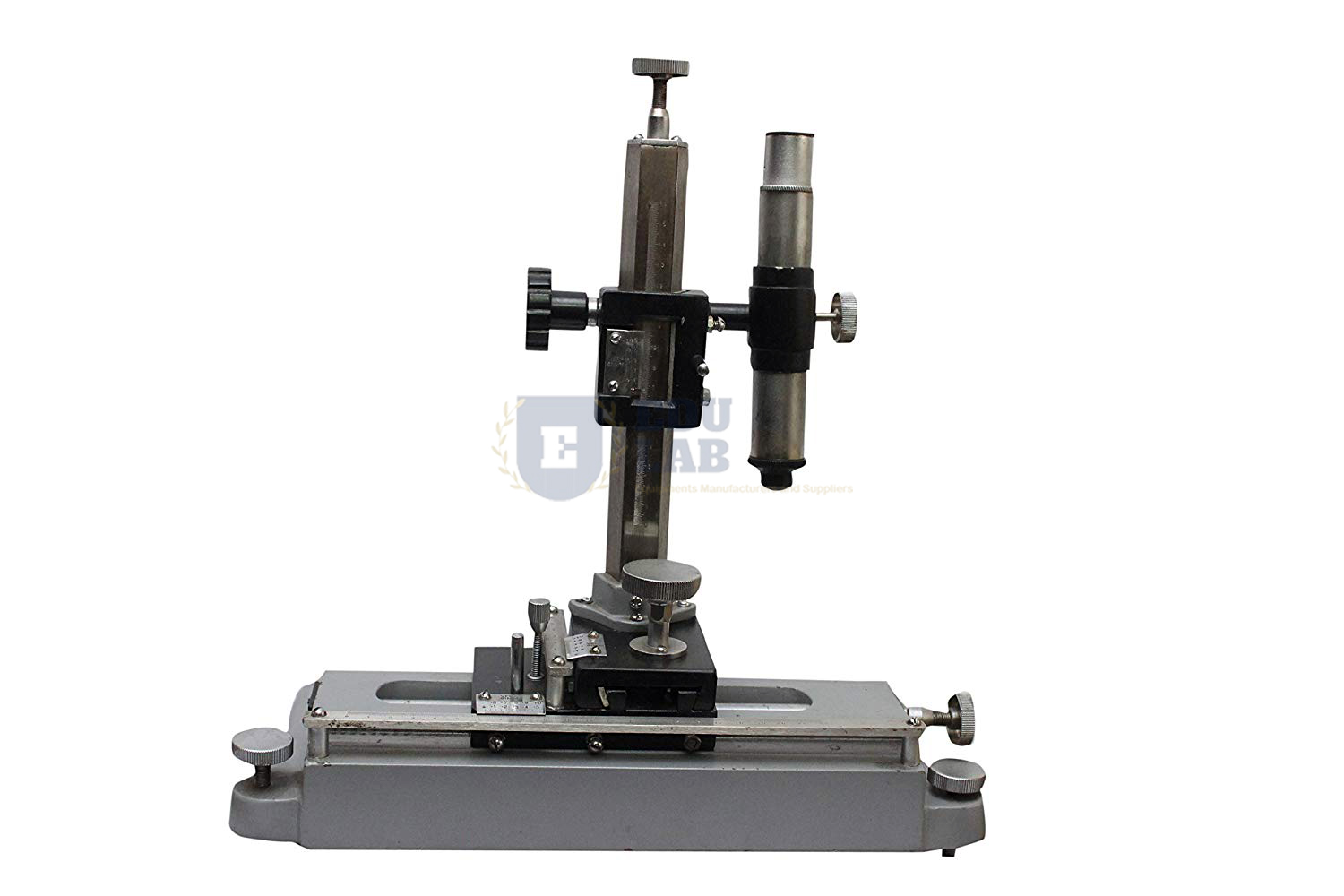

Vernier Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10982
Quick Answer: The Vernier Microscope is a travelling microscope with stainless steel horizontal and vertical scales, carriages reading to a least count of 0.01 mm, and a Ramsden eyepiece with cross-line graticule.
Last updated: October 2026
Key Features
Horizontal and vertical scales of stainless steel.
Carriages with locking screws for rough setting and a fine adjustment knob at the end of each slide.
Verniers with a least count of 0.01 mm; provision for a swing-out magnifier to read them.
Microscope tube with rack-and-pinion focusing, on a vertical carriage supported by a brass pillar.
Ramsden eyepiece with cross-line graticule.
Heavy cast metal base with levelling screws and a removable flat stage; packed in a polished wooden case.
Technical Specifications
| Specification | Value |
|---|---|
| Scales | Stainless steel, horizontal and vertical |
| Least count | 0.01 mm (vernier) |
| Eyepiece | Ramsden, cross-line graticule |
| Focusing | Rack and pinion |
| Pillar | Brass |
| Base | Heavy cast metal, levelling screws, removable flat stage |
| Case | Polished wood |
About This Product
To measure, the cross-line in the eyepiece is brought onto one edge of the object, the vernier is read, and the carriage is moved to the other edge for a second reading. The vertical column rides on a transverse carriage that slides along a metal rod in the base, so the tube can be set both across and up and down before the fine adjustment knobs take over. Educational Lab Equipments can supply and export the Vernier Microscope to Djibouti, Grenada, Eswatini, Iceland, Panama and Kuwait.
Frequently Asked Questions
What is the least count of the Vernier Microscope?
The carriage verniers have a least count of 0.01 mm, and there is provision for attaching a swing-out magnifier to read them.
Can the tube move in both directions?
Yes. The microscope tube is adjustable vertically and horizontally: each carriage slides along its own stainless steel scale, with locking screws for approximate setting and a fine adjustment knob at the end of each slide.
How is it supplied?
The complete unit is packed in a polished wooden case.
