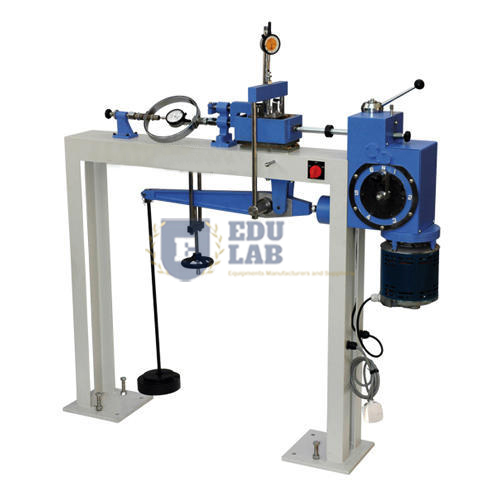

Direct Shear Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11918
Quick Answer: Built around a closed-loop motor with epicycloid reducers, the Direct Shear Apparatus measures the shearing resistance of consolidated and drained, undisturbed or remoulded soil specimens. Shear speed can be set anywhere from 0.00001 to 9.99999 mm/minute, with up to 5000 N of shear effort over the whole range.
Last updated: October 2026
Key Features
Accepts round specimens of 60 and 100 mm diameter and square specimens of 60 x 60 and 100 x 100 mm.
Automatic internal check and position reset at the start of every test.
Keyboard and alphanumeric display with memory; data can be entered on stand-by without disturbing the specimen.
Speed and displacement displayed to 0.00001 mm, with pilot lamps for faults and alarms.
Vertical load applied directly up to 500 N, or through a 10:1 lever arm up to 5500 N.
Separate return speed for residual shear, and a settable maximum shear box excursion that ends the test automatically.
Technical Specifications
| Specification | Value |
|---|---|
| Specimen sizes | 60 and 100 mm dia.; 60 x 60 and 100 x 100 mm square |
| Shear speed | 0.00001 to 9.99999 mm/minute |
| Maximum shear effort | 5000 N over the whole speed range |
| Vertical load | Direct up to 500 N; with 10:1 lever arm up to 5500 N |
| Display resolution | 0.00001 mm (speed and displacement) |
| Drive | Closed-loop control motor with epicycloid reducers |
| Shear box mounting | Ball track with antifriction system |
| Power supply | 230 V AC, single phase, 50 Hz |
| Not included | Shear box, hollow punch and tamper |
About This Product
With the chosen vertical load on the specimen, the shear box is driven at the set speed and the display reports speed and displacement as the test runs. A faster return speed can be entered for the residual stage, so the box is brought back quickly when a residual shear test follows. For routine direct shear strength work the specimen size is 60 mm x 60 mm x 25 mm.
Frequently Asked Questions
What specimen sizes does the Direct Shear Apparatus accept?
Round specimens of 60 mm and 100 mm diameter and square specimens of 60 x 60 mm and 100 x 100 mm. Direct shear strength tests are described on 60 mm x 60 mm x 25 mm specimens.
How is the vertical load applied?
Either directly, up to 500 N, or through a lever arm with a 10:1 ratio, which takes the maximum vertical load to 5500 N.
Is the shear box included?
No. The shear box, hollow punch and tamper are not part of the standard supply and are ordered separately.
