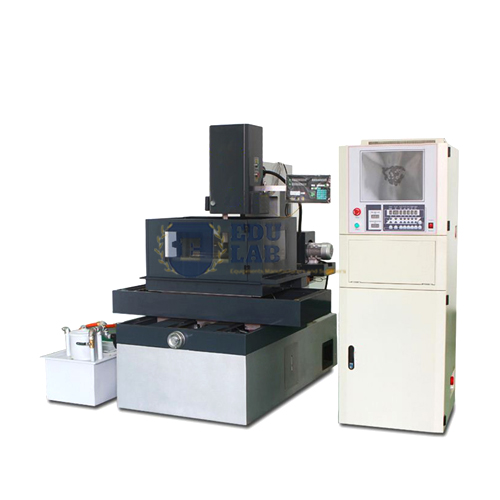

Precision EDM Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-11755
Quick Answer: The Precision EDM Machine shapes and drills work with electrical discharges, using brass electrodes of 1.0 mm x 400 mm, a coolant pressure setting from 0 to 100 kg/cm2 and a 415 V, 3-phase supply.
Last updated: October 2026
Key Features
Two-part design with low working height.
Ball screws on X and Y; LM guideways on Z.
Coolant pressure variable from 0 to 100 kg/cm2, with SS accumulator for constant pressure and a safety pressure switch for over-pressure.
DC stepper motor with belt drive.
Special circuit for deep drilling and current booster for high-speed drilling.
Water tank with steel-bodied coolant pump, safety interlock and machine lamp.
Technical Specifications
Specification
Value
Power supply
415 V, 3 phase, 50 Hz
Brass electrodes
1.0 mm dia x 400 mm
Electrode range
0.3–3.0 mm
Special drilling electrodes
3.1 to 10 mm
Ruby guide
0.0–3.0 mm
Guides
1.0 mm, 2 nos
Rubber stoppers
5 nos
Coolant pressure
0 to 100 kg/cm2
About This Product
Electrical discharges between the electrode and the work remove material to produce the required shape, and reverse sparking is also possible. A special circuit handles deep drilling, a current booster speeds up drilling, and electrodes from 0.3 to 3.0 mm can be used, with special drilling electrodes from 3.1 to 10 mm.
Frequently Asked Questions
How does the Precision EDM Machine work?
It uses electrical discharges, or sparks, to remove material and obtain the desired shape. Reverse sparks are also possible.
What electrode sizes can it use?
Electrodes from 0.3 to 3.0 mm, and special drilling electrodes from 3.1 to 10 mm. Brass electrodes of 1.0 mm x 400 mm are listed in the supply.
