Parallelogram of Forces Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10370
Quick Answer: The Parallelogram of Forces Apparatus comes with a board of 25.5 x 19.5 x 0.5 in, 2 pulleys on clamps, nickel-plated iron hangers and 12 slotted weights of 50 g each.
Last updated: October 2026
Key Features
Board measuring 25.5 x 19.5 x 0.5 in.
2 pulleys mounted on clamps.
Iron hangers, nickel plated.
12 slotted weights of 50 g each.
Technical Specifications
Specification
Value
Board
25.5 x 19.5 x 0.5 in
Pulleys
2, on clamps
Hangers
Iron, nickel plated
Slotted weights
12 x 50 g
About This Product

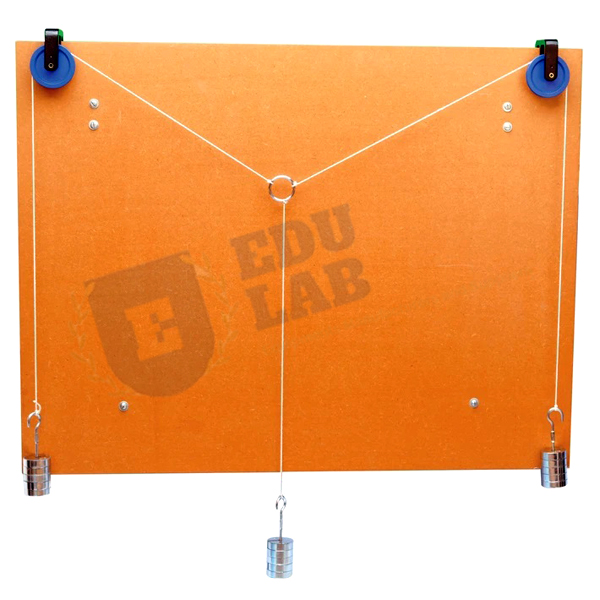

Loads on the hangers, run over the clamped pulleys, set up forces acting at angles to one another in front of the board, so students can test the parallelogram law of forces. The 50 g slotted weights allow the loads to be changed in even steps.
Frequently Asked Questions
What weights are included?
12 slotted weights of 50 g each, used with the nickel-plated iron hangers.
