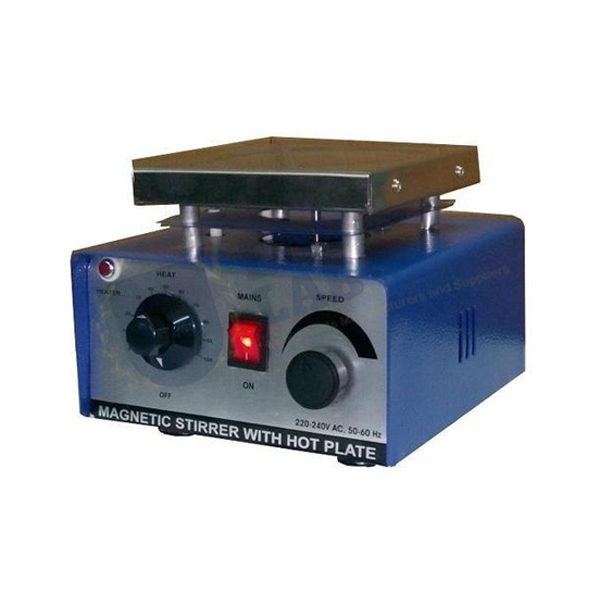

Magnetic Stirrer with Hot Plate Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10332
Quick Answer: The Magnetic Stirrer with Hot Plate combines stirring at 30 to 1500 rpm with heating up to 340 degrees C on a 135 x 135 mm plate. It accepts an external temperature sensor that reads and controls the actual liquid temperature.
Last updated: October 2026
Key Features
Stirring speed 30 to 1500 rpm.
Plate temperature up to 340 degrees C from a 530 W heater.
135 x 135 mm plate.
Stirring capacity up to 20 litres.
Works with an external temperature sensor to display and control liquid temperature.
Moulded stainless steel casing.
Technical Specifications
Specification
Value
Stirring speed
30 to 1500 rpm
Maximum plate temperature
340 degrees C
Heater power
530 W
Plate size
135 x 135 mm
Stirring capacity
20 litres
Electrical supply
240 V
Dimensions (W x D x H)
155 x 270 x 55 mm
Net weight
2.3 kg
About This Product
Heating and stirring on one unit keeps a solution evenly mixed while it is brought to temperature, which is useful in chemical synthesis and in physical and chemical analysis. With the external sensor in the liquid, the controller works from the real solution temperature rather than the plate, so the target is reached quickly and held more closely.
Frequently Asked Questions
How hot does the plate get?
The maximum plate temperature is 340 degrees C, from a 530 W heater.
Can it control the temperature of the liquid itself?
Yes. The model is suitable for an external temperature sensor, which displays and controls the actual liquid temperature.
What speed range does the stirrer have?
Stirring speed runs from 30 to 1500 rpm, with a stirring capacity of 20 litres.
