Monocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10389

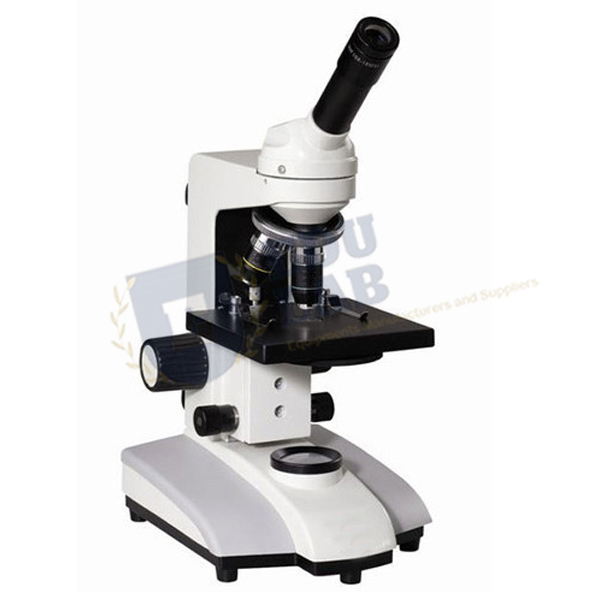

Quick Answer: The Monocular Microscope is a portable instrument with a 45 degree inclined head that rotates through 360 degrees, a quadruple revolving nosepiece and achromatic 4x, 10x, 40x (S/L) and 100x (S/L) objectives.
Last updated: November 2026
Key Features
Monocular head, 45 degree inclined and 360 degree rotatable, with anti-fungus coated optics and prisms.
Condenser NA 1.25 with iris diaphragm.
Coarse and fine focusing system.
Quadruple revolving reversible nosepiece.
Mechanical stage 120 x 132 mm with X-Y movement.
In-built 6 V/20 W halogen light with power regulator, or a plano concave mirror attachment.
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, 45 degree inclined, 360 degree rotatable |
| Eyepiece | WF 10x |
| Objectives | Achromatic 4x, 10x, 40x (S/L), 100x (S/L) |
| Condenser | NA 1.25 with iris diaphragm |
| Stage | Mechanical, 120 x 132 mm, X-Y movement |
| Illumination | 6 V/20 W halogen with power regulator, or plano concave mirror |
About This Product
As a portable unit with a WF 10x eyepiece, it is lit either by its in-built halogen source, whose brightness is set with the power regulator, or by a plano concave mirror. The iris diaphragm on the NA 1.25 condenser adjusts the light, and coarse and fine controls bring the specimen into focus. Colleges and TVET centres in Sudan, Kazakhstan, Honduras, Maldives, Brunei and Trinidad and Tobago can source the Monocular Microscope from Educational Lab Equipments.
Frequently Asked Questions
What light source does it use?
An in-built 6 V/20 W halogen light source with a power regulator, or alternatively a plano concave mirror attachment.
What is the stage size?
A mechanical stage of 120 x 132 mm with X-Y movement.
Are the optics coated?
Yes. The optics in the monocular head, including the prisms, are anti-fungus coated.
What else is useful with the Monocular Microscope in a college or clinical lab?
A Stage Micrometer for calibrating the eyepiece scale, prepared slides such as Artery, Vein & Nerve (400x) and Bacteria (1000x, gram stain), and a Slide Holder for storing slides.
How should the Monocular Microscope be cleaned and stored?
Switch off and let the lamp cool, wipe oil from the 100x objective with lens tissue, lower the stage, set the lowest-power objective in place and fit the dust cover.
