Tilting Flume Manufacturer,Supplier and Exporter in India
Product Code : EL-TM-11602
Quick Answer: The Tilting Flume is an open-channel rig with a 200 x 300 mm hydraulic flume 6000 mm long, whose bed slope can be set positive or negative with a screw jack. Transparent windows 1800 mm long on both sides let the flow be watched in the test section.
Last updated: October 2026
Key Features
Hydraulic flume, 200 x 300 mm cross-section, 6000 mm long.
Transparent window 1800 mm long on either side.
Screw jack for positive or negative bed slope.
Sliding gates upstream and downstream to regulate flow depth.
Flow-steadying inlet section and supply tank with wave damping.
3 HP centrifugal monoblock pump, sump tank and orifice meter (inlet/throat 50/25 mm) with manometer.
Technical Specifications
| Specification | Value |
|---|---|
| Flume cross-section | 200 x 300 mm |
| Flume length | 6000 mm |
| Side windows | Transparent, 1800 mm long, both sides |
| Slope adjustment | Screw jack, positive or negative |
| Pump | 3 HP centrifugal monoblock |
| Discharge measurement | Orifice meter with manometer, inlet/throat 50/25 mm |
| Depth measurement | Hook or point gauge on trolley |
About This Product

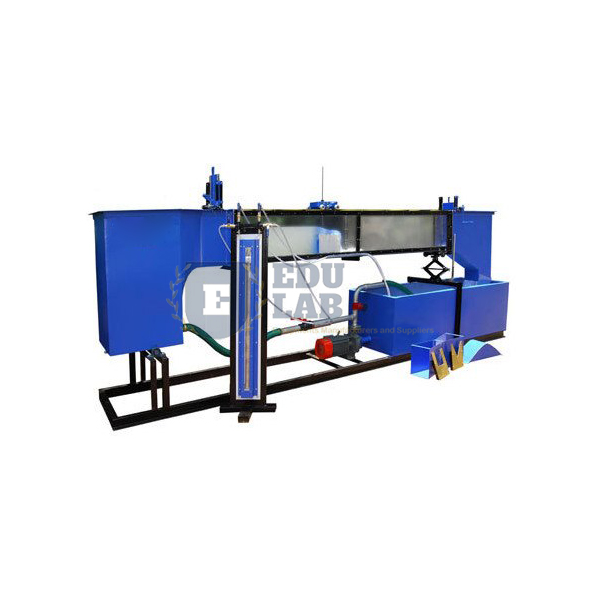

A sump tank, 3 HP pump and supply tank with wave damping feed the channel, and a flow-steadying section at the inlet keeps disturbances at the test section low. Students set the bed slope with the screw jack, regulate depth with the upstream and downstream sliding gates, and read discharge from the orifice meter and manometer. Depths are taken with a hook or point gauge on a trolley that travels both along and across the channel. Colleges and TVET centres in Eritrea, Brazil, Serbia, Lebanon and Vietnam can source the Tilting Flume from Educational Lab Equipments.
Frequently Asked Questions
Can the flume slope be reversed?
Yes. The bed slope is changed with a screw jack and can be set to positive or negative slopes.
How are discharge and depth measured?
Discharge is measured by an orifice meter with manometer (inlet/throat 50/25 mm). Depth is read with a hook or point gauge on a trolley with longitudinal and transverse movement.
What controls the depth of flow?
Sliding gates, one at the upstream end and one at the downstream end of the test section, regulate the depth of flow.
Related: Thermodynamics Lab Equipments, Redwood Viscometer Apparatus, Saybolt Viscometer Apparatus.
For a quotation on the Tilting Flume, contact Educational Lab Equipments.
