Creep Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-MTM-11573

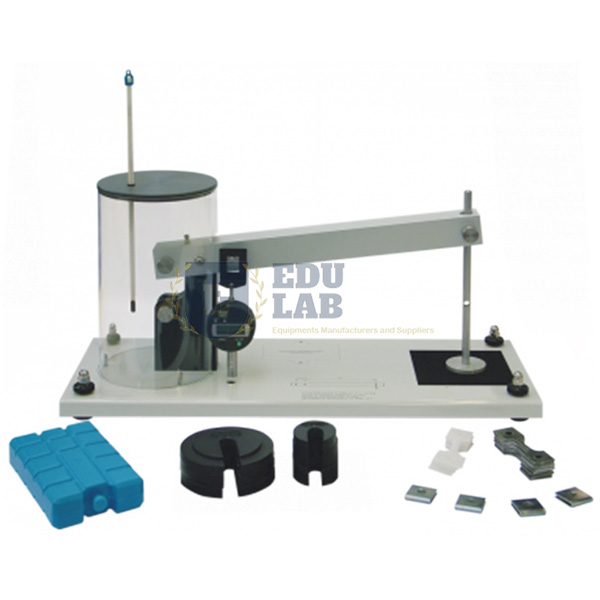

Quick Answer: The Creep Testing Machine is a table unit for investigating the creep behaviour of different materials, using flat lead and PE specimens under tensile stresses of 5–25 N/mm2. Elongation is followed on a 0–10 mm position gauge with 0.01 mm resolution.
Last updated: October 2026
Key Features
Table unit for creep tests on different materials.
Flat specimens of lead and PE, 2 x 5 mm cross-section, 25 mm measured length.
Tensile stress range 5–25 N/mm2.
Position measurement gauge, 0–10 mm range, 0.01 mm resolution.
Tests above or below room temperature possible with a conditioning box.
Technical Specifications
Specification
Value
Specimen material
Lead, PE
Specimen cross-section
2 x 5 mm
Measured length
25 mm
Tensile stress range
5–25 N/mm2
Position measurement range
0–10 mm
Resolution
0.01 mm
About This Product
A flat specimen is held under a set tensile stress while the position gauge tracks how its length changes over time. Testing both lead and PE specimens compares the creep behaviour of two different materials, and a conditioning box allows the same tests above or below room temperature. Colleges and TVET centres in Mongolia, Uganda, Fiji, Ghana and Slovenia can source the Creep Testing Machine from Educational Lab Equipments.
Frequently Asked Questions
Which specimens does the creep tester use?
Flat specimens made of lead and PE, with a 2 x 5 mm cross-section and a 25 mm measured length, loaded across a tensile stress range of 5–25 N/mm2.
Can creep be tested at other temperatures?
Yes. Experiments above or below room temperature are possible with a conditioning box.
How finely is elongation measured?
The position measurement gauge covers 0–10 mm with a resolution of 0.01 mm.
