Continuous Distillation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : EL-CELE-11496

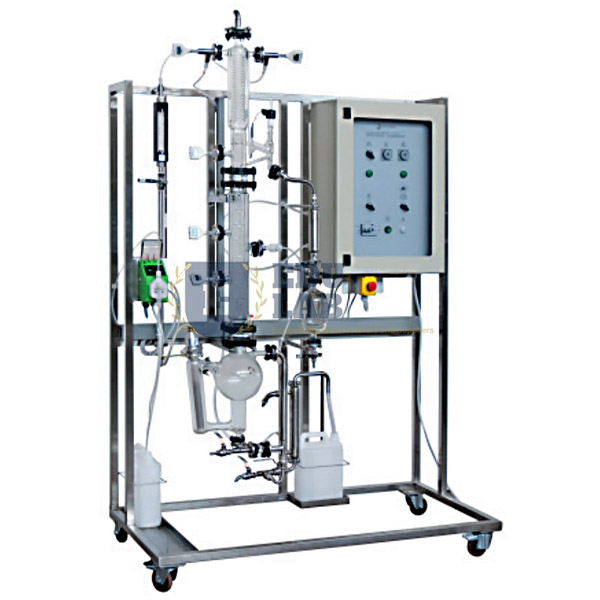

Quick Answer: The Continuous Distillation Pilot Plant feeds a 600 mm column with 7 sieve trays from a 5-litre tank by metering pump, drawing distillate and bottoms product into separate tanks.
Last updated: October 2026
Key Features
600 mm distillation column with 7 sieve trays.
Metering pump feeding 0–8.5 litres/hour from a 5-litre feed tank.
3-litre reboiler with 1600 W heater on a thyristor power unit.
Condenser with reflux head; reflux ratio set by 2 programmable timers.
6 digital thermometers with Pt100 probes in stainless steel sleeves.
Collection tanks of 1 litre for distillate and 5 litres for bottoms product.
Technical Specifications
Specification
Value
Column
600 mm, 7 sieve trays
Reboiler
3 litres, 1600 W
Feed
5 litre tank, metering pump 0–8.5 l/h
Product tanks
Distillate 1 litre, bottoms 5 litres
Heat exchangers
3 tube-in-tube
Temperature
6 digital thermometers, Pt100 probes
Flow meter
Variable area, 20–200 litres/hour
About This Product
Running continuously, the plant lets students hold a steady feed rate, set the reflux ratio and watch the column reach steady state while distillate and bottoms are drawn off. The six digital thermometers show how the separation responds when the operating conditions are changed. Colleges and TVET centres in Laos, Afghanistan, Malaysia, Yemen, Luxembourg and Egypt can source the Continuous Distillation Pilot Plant from Educational Lab Equipments.
Frequently Asked Questions
How is the column fed?
A metering pump delivers 0–8.5 litres per hour from a 5-litre feeding tank.
What trays does the column use?
The 600 mm column holds 7 sieve trays above a 3-litre reboiler with a 1600 W heater.
Where do the products collect?
Distillate goes to a 1 litre tank and bottoms product to a 5 litre tank.
