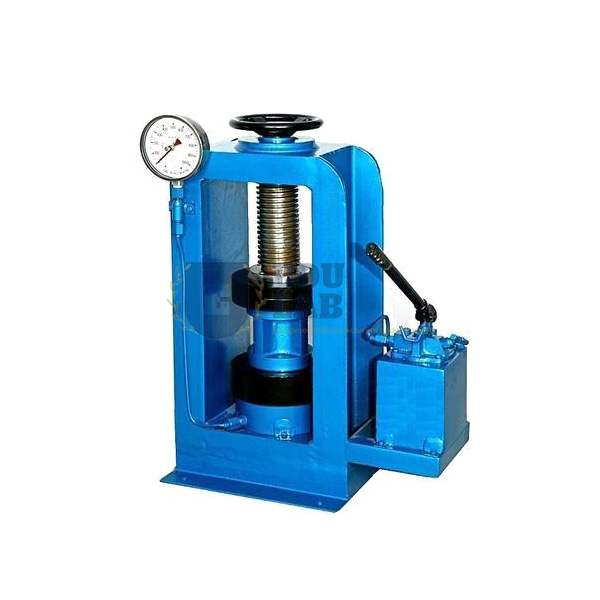

Cube Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-BET-11563
Quick Answer: The Cube Testing Machine applies compressive load to cube specimens and shows it on Bourdon tube load gauges fitted with a maximum load pointer. It can be worked electrically or by hand, since the electric pumping unit also carries a hand-operated pump.
Last updated: October 2026
Key Features
Load read on Bourdon tube type gauges calibrated against proving rings.
Maximum load pointer on each load gauge.
Micro switches on the gauges of electric pumping units stop the motor as the load nears full gauge capacity.
Relays keep the motor from restarting by itself after a power breakdown.
Control knob for setting the pace rate of loading.
Hand-operated pump fitted alongside the electric pumping unit.
Technical Specifications
| Specification | Value |
|---|---|
| Operation | Electrically cum manually (hand) operated |
| Load measurement | Bourdon tube type load gauges |
| Gauge calibration | Against proving rings |
| Load indicator | Maximum load pointer |
| Overload cut-out | Micro switches stop the motor near maximum gauge capacity |
| Restart control | Relays prevent self-restart after a power breakdown |
About This Product
Cube specimens are loaded while the operator follows the rising gauge reading and sets the pace rate with the control knob. As the load approaches the gauge's full capacity, micro switches cut the motor so the gauge is not overloaded, and the maximum load pointer holds the peak value for reading afterwards.
Frequently Asked Questions
Can load be applied by hand as well as electrically?
Yes. The machine is electrically cum manually operated: the electrically operated pumping unit is also fitted with a hand-operated pump.
What happens if the power fails during a test?
Relays are built in so that the motor does not start again on its own after a power breakdown.
How is overloading of the load gauge avoided?
On electrically operated pumping units the load gauges carry micro switches that switch off the motor as the load approaches the maximum capacity of the gauge.

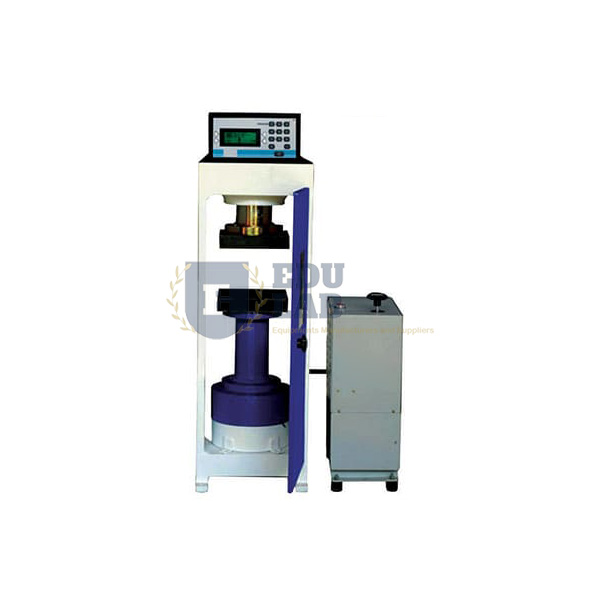

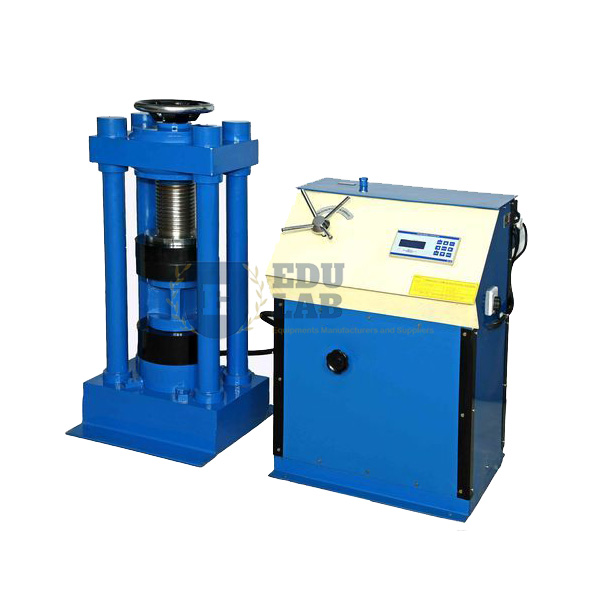

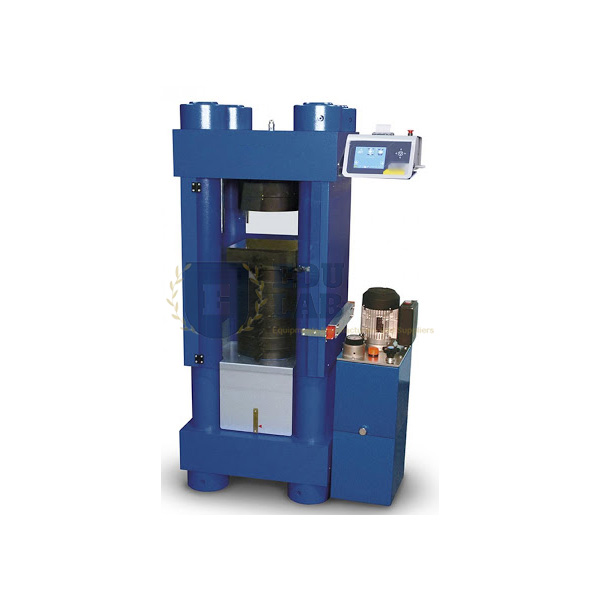

Related: Building Engineering Trainers, Compression Testing Machine, Compression Testing Machine Electrically Operated, Digital Compression Testing Machine.
