LED TV Television Trainer Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11291

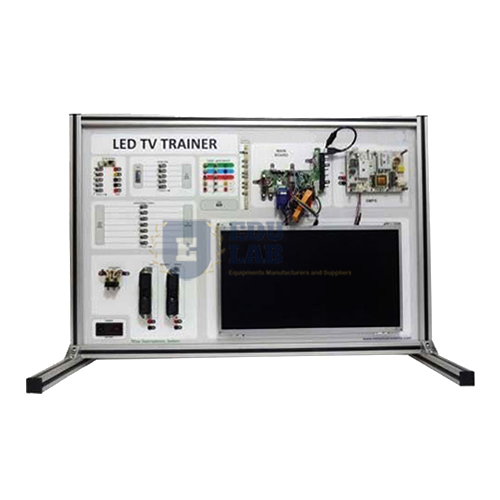

Quick Answer: The LED TV Television Trainer is built around a 21-inch HD LCD colour television / PC monitor, with its circuit sections exposed on a PCB and the full block diagram printed on the mimic.
Last updated: October 2026
Key Features
21-inch HD LCD colour television that also works as a PC monitor.
Composite video and VGA inputs; PAL and NTSC video formats.
Manual and remote control operation.
Circuit sections exposed on a PCB, with the complete block diagram on board.
Test points for measuring voltages and observing waveforms.
Soldering-free fault creation and troubleshooting.
Technical Specifications
Specification
Value
Display
21-inch HD LCD colour TV / PC monitor
Inputs
Composite video, VGA
Video formats
PAL, NTSC
Operation
Manual and remote control
Fault simulation
Soldering-free
About This Product
Students identify each part of the set at a glance, follow signals through the sections on the block diagram and check voltages and waveforms at the test points, guided by theory and product tutorials. Faults are created without soldering, so the class practises real fault finding and repair techniques on a working television.
Frequently Asked Questions
How are faults created on the LED TV Television Trainer?
Faults are simulated on the platform without soldering, so students can practise fault finding and troubleshooting on the working set.
Which inputs and video formats does it accept?
Composite video and VGA inputs, with PAL and NTSC video formats; it can be operated manually or by remote control.
