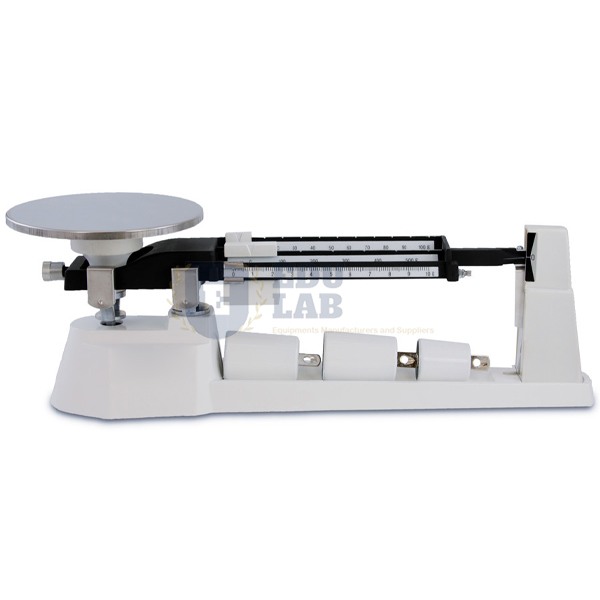

Balance Triple Beam Manufacturer,Supplier and Exporter in India
Product Code : EL-B-10590
Quick Answer: The Balance Triple Beam is a single-pan balance with three notched beams and a 610 g capacity, rising to 2610 g with its two 1000 g supplementary masses.
Last updated: October 2026
Key Features
Three notched weighing beams with centre-indicating sliding masses.
Capacity 610 g on the beams.
Up to 2610 g with supplementary masses hung on the end of the beam.
Supplementary masses store in the recessed base.
Magnetic damping.
Stainless steel pan, 150 mm diameter.
Technical Specifications
Specification
Value
Capacity on beams
610 g
Capacity with supplementary masses
2610 g
Beam ranges
0–500 g x 100 g, 0–100 g x 10 g, 0–10 g x 0.1 g
Supplementary masses
2 x 1000 g
Damping
Magnetic
Pan
Stainless steel, 150 mm diameter
About This Product
Each of the three beams carries a sliding mass for a different step – hundreds, tens and tenths of a gram – so a reading is built up by moving the masses along the notches. For heavier objects the supplementary masses are hung on the end of the beam, and when they are not needed they sit in the recess in the base. Magnetic damping helps the beam settle.
Frequently Asked Questions
What is the capacity of the triple beam balance?
It weighs up to 610 g on the beams. Hanging the two 1000 g supplementary masses on the end of the beam raises the capacity to 2610 g.
What are the beam divisions?
The beams read 0 to 500 g in 100 g steps, 0 to 100 g in 10 g steps and 0 to 10 g in 0.1 g steps.
Where are the supplementary masses kept?
They can be stored in the recessed base when they are not required.
