Hypsometer Copper Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10909

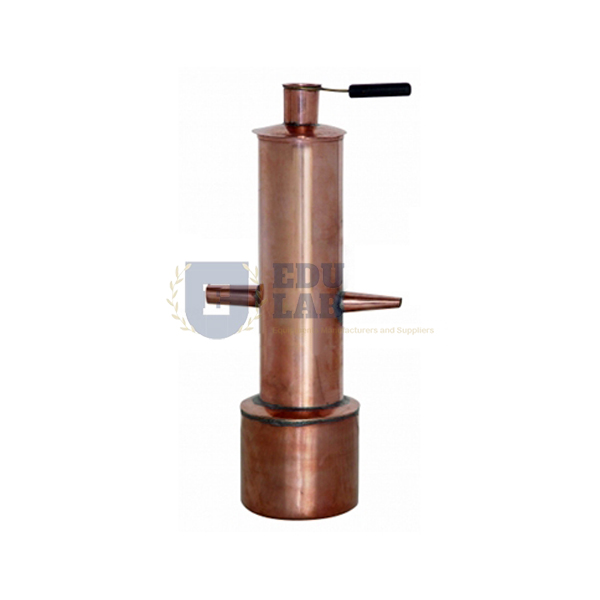

Quick Answer: Hypsometer Copper is used to find the upper fixed point of thermometers and boiling points at pressures other than atmospheric, with a boiling vessel and a steam-jacketed inner tube, 300 x 100 mm overall.
Last updated: October 2026
Key Features
Boiling vessel with a steam-jacketed inner tube.
Lid with a tubule that holds the thermometer under test in a bung.
Side outlet draining tube.
Glass manometric tube mounted with a rubber bung.
Overall size 300 x 100 mm.
Technical Specifications
Specification
Value
Body
Copper
Inner tube
Steam jacketed
Thermometer mounting
Lid tubule with bung
Manometer
Glass manometric tube, rubber bung
Overall size
300 x 100 mm
About This Product
Steam from the boiling vessel surrounds the jacketed inner tube while the thermometer under test is held in a bung in the lid's tubule. The glass manometric tube indicates the pressure, and the side outlet lets the vessel be drained. The Hypsometer Copper can be dispatched from India to São Tomé and Príncipe, Barbados, Bhutan, Australia and Bahamas.
Frequently Asked Questions
What is this hypsometer used for?
For determining the upper fixed point of thermometers, and boiling points at pressures other than atmospheric.
How is the thermometer held?
The lid has a tubule that holds the thermometer under test in a bung.
