Wind Energy Modular Trainer With Connection Manufacturer,Supplier and Exporter in India
Product Code : EL-ETS-11558

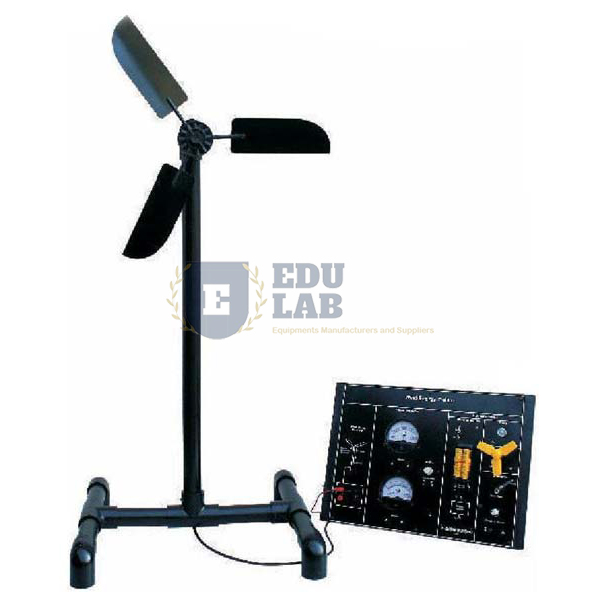

Quick Answer: The Wind Energy Modular Trainer With Connection is built round a 400 W, 12 V AC wind turbine and a set of modules, including a DC to AC converter, energy measurement module and network distributor, for assembling and testing a wind installation.
Last updated: October 2026
Key Features
400 W, 12 V AC wind turbine with a 250 W, 3 ohm braking resistance.
Motor kit with stepper motor and 300 W power supply for driving the turbine.
Anemometer and wind direction sensor mounted on a stand.
Measurement module for wind speed, wind direction, current, voltage up to 30 V and power up to 1000 W.
DC to AC converter, energy measurement module, differential magneto-thermal switch and network distributor.
Load module with a 35 W dichroic lamp and a 3 W LED lamp at mains voltage, each separately switched.
Technical Specifications
| Specification | Value |
|---|---|
| Wind turbine | 400 W, 12 V AC |
| Braking resistance | 250 W, 3 ohm |
| Load module | Two mains voltage lamps: dichroic 35 W, LED 3 W |
| Measurement module | Wind speed (m/s), wind direction (degrees), current +/-15 A (two DC ammeters), voltage up to 30 V, power up to 1000 W |
| Turbine drive kit | Stepper motor with 300 W power supply |
| Other modules | DC to AC converter, energy measurement, differential magneto-thermal switch, network distributor |
| Wind sensors | Anemometer and wind direction sensor on a stand |
About This Product
Students identify each component and its function, interpret the installation diagrams, then assemble the proposed installations on the supporting frame. Once everything is built they measure wind speed, analyse how the turbine behaves and check how the installation operates, with the stepper motor kit available to drive the turbine. Educational Lab Equipments can supply and export the Wind Energy Modular Trainer With Connection to Montenegro, Bulgaria, Tunisia, Honduras, Chile and Poland.
Frequently Asked Questions
How is the turbine driven during lab work?
A motor kit made up of a stepper motor and a 300 W power supply is included for driving the wind turbine.
What does the measurement module record?
Wind speed in m/s, wind direction in degrees, current through two DC ammeters of +/-15 A, voltage up to 30 V and power up to 1000 W.
Related: Energy Training System, Wind Energy Modular Trainer, Photovoltaic Trainer.
For a quotation on the Wind Energy Modular Trainer With Connection, contact Educational Lab Equipments.
