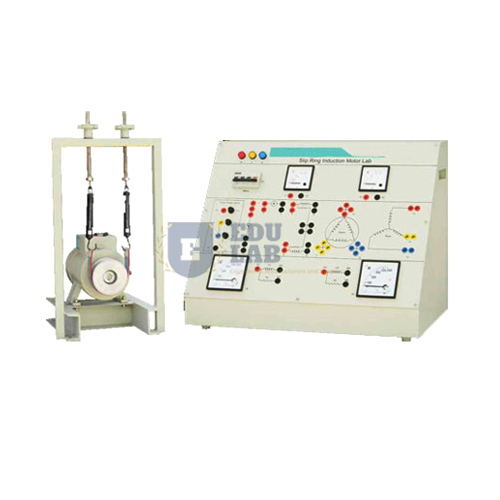

Slip Ring Induction Motor Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11232
Quick Answer: A three-phase slip ring induction motor rated 415 volts, 50Hz, from 2 HP to 7.5 HP, started through a rotor resistance starter with overload and no-volt protection.
Last updated: October 2026
Key Features
Rotor and stator wound with copper conductor.
Rotor resistance starter with overload and no-volt protection.
Gun metal slip rings with carbon brushes.
Dynamically balanced slanted rotor for low noise; large bearings.
Base frame with dial-type spring and bolts for machine readings; balanced brake drum and rotor pulley.
Vacuum pressure impregnated field windings and armature; terminal box with all terminals fitted.
Technical Specifications
Specification
Value
Supply
3-phase, 415 V, 50 Hz
Power
2 HP to 7.5 HP
Windings
Copper conductor, rotor and stator
Starting
Rotor resistance starter, overload and no-volt protection
Slip rings
Gun metal, carbon brushes
Readings
Dial-type spring on base frame
About This Product
The slip rings bring the rotor circuit out to a resistance starter, which also provides overload and no-volt protection during starting. For taking machine readings, the base frame carries a dial-type spring and bolts, and the brake drum and rotor pulley are balanced.
Frequently Asked Questions
What ratings is the Slip Ring Induction Motor available in?
Three-phase, 415 volts, 50Hz, from 2 HP to 7.5 HP.
How is the motor started?
With a starter resistance connected to the rotor, including protection against overload and no-volt conditions.
What are the windings and slip rings made of?
Rotor and stator are wound with copper conductor, and the slip rings are gun metal with carbon brushes.
