Single Phase Transformer Lab Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11315

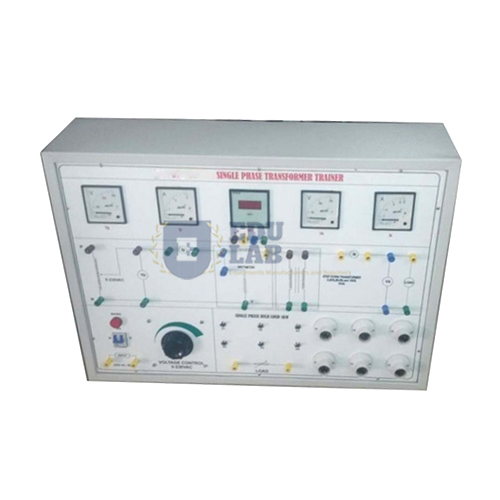

Quick Answer: The Single Phase Transformer Lab is a stand-alone panel built around an R-core transformer for tests of polarity, turns ratio, transformation ratio, iron loss, copper loss and efficiency. Terminals are grouped in separate sections so each test can be set up in sequence.
Last updated: October 2026
Key Features
R-core transformer.
Polarity, turns ratio and transformation ratio tests.
Iron loss, copper loss and efficiency measurements.
Terminals arranged in separate sections.
Stand-alone panel with diagrammatic representation and meters.
Extensive e-manual.
About This Product
Each test is presented on its own so it can be studied in the right order, beginning with polarity and the ratios and moving on to the loss measurements from which efficiency is worked out. The diagram on the panel shows where each connection goes, and the e-manual explains every exercise.
Frequently Asked Questions
What tests can be done on the Single Phase Transformer Lab?
Polarity, turns ratio, transformation ratio, iron loss, copper loss and efficiency, among others.
What type of transformer is used?
An R-core transformer, mounted on a stand-alone panel with terminals in different sections.
