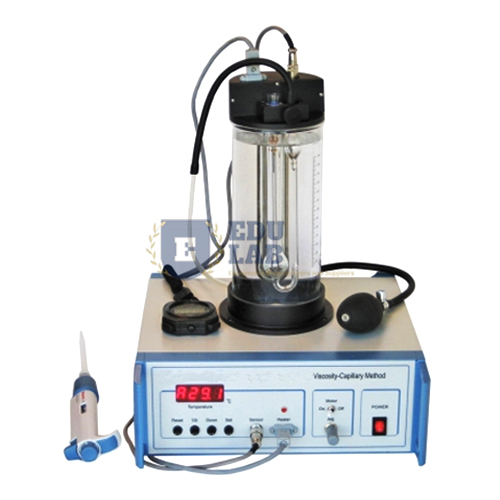

Capillary Tube Viscosimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11362
Quick Answer: The Capillary Tube Viscosimeter measures the dynamic viscosity of liquids by Poiseuille flow through interchangeable 0.2 and 0.4 mm capillaries fed from a pressurised, thermostatically controlled vessel.
Last updated: October 2026
Key Features
Removable, thermostatically controlled vessel that can be pressurised.
Interchangeable, thermostatically controlled capillary tubes, 0.2 and 0.4 mm diameter.
Temperature from ambient to 80 degrees C, stated to 0.5 degrees C.
Mercury manometer, pressure range 0 to 100 cm Hg.
Magnetic stirrer keeps the liquid temperature uniform; thermometer included.
Stopwatch and measuring cylinder for flow rate.
Technical Specifications
| Specification | Value |
|---|---|
| Capillary diameters | 0.2 and 0.4 mm |
| Temperature range | Ambient to 80 degrees C (to 0.5 degrees C) |
| Pressure range | 0–100 cm Hg |
| Manometer | Mercury |
| Dimensions | 37 x 65 x 40 cm high; 120 cm high with manometer |
| Net weight | 20 kg |
About This Product
Students set the vessel pressure and liquid temperature, collect the liquid that passes through the capillary in a measuring cylinder and time it, then work out viscosity from that single pressure reading and time interval. Changing the capillary or the temperature lets them investigate Poiseuille flow and how viscosity varies with temperature. Colleges and TVET centres in New Zealand, Mexico, Vietnam, Tajikistan and Kyrgyzstan can source the Capillary Tube Viscosimeter from Educational Lab Equipments.
Frequently Asked Questions
What temperature range does it cover?
From ambient up to 80 degrees C, stated to 0.5 degrees C. The vessel and the capillary tube are both thermostatically controlled, and a magnetic stirrer keeps the liquid temperature uniform.
Which capillary sizes are supplied?
Interchangeable capillary tubes of 0.2 mm and 0.4 mm diameter.
How is pressure measured?
With a mercury manometer covering 0 to 100 cm Hg; the vessel pressurisation can be varied continuously.
Related: Electronics Engineering Lab Equipments, Falling Sphere Viscosimeter.
For a quotation on the Capillary Tube Viscosimeter, contact Educational Lab Equipments.
