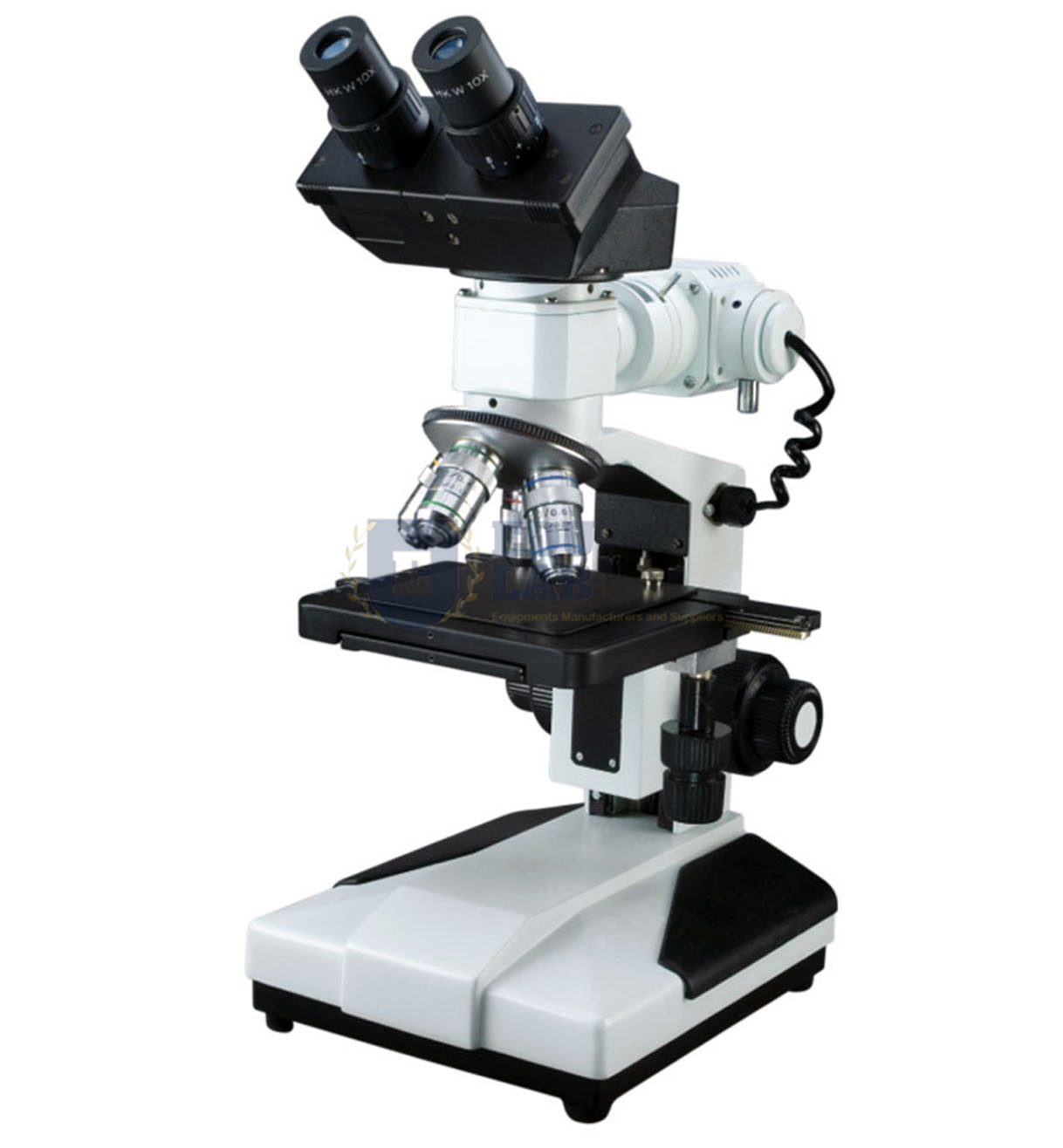

Binocular Upright Metallurgical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10988
Quick Answer: The Binocular Upright Metallurgical Microscope lights the specimen through a brightfield vertical illuminator with a 6V–20W halogen lamp and views it with achromatic M4x, M10x and M40x objectives through a 45 degree binocular head.
Last updated: October 2026
Key Features
Binocular head inclined at 45 degrees.
Large coaxial mechanical stage for X-Y movement of specimens.
Coaxial focusing knobs on both sides.
Quadruple revolving nosepiece with accurate centring and positive click stops.
Achromatic M4x, M10x and M40x objectives; any two eyepieces from H6x, WF10x and H16x.
Brightfield vertical illuminator, 6V–20W halogen, with field diaphragm, filter slots and bulb-centring mechanism.
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular, 45 degree inclined |
| Stage | Large coaxial mechanical, X-Y |
| Focusing | Coaxial knobs, both sides |
| Nosepiece | Quadruple revolving |
| Objectives | Achromatic M4x, M10x, M40x |
| Eyepieces | H6x, WF10x, H16x – any two |
| Illumination | Brightfield vertical illuminator, 6V–20W halogen |
About This Product
Light for the specimen comes from the brightfield vertical illuminator, whose field diaphragm, filter slots and bulb-centring mechanism let the user set up even, centred illumination. Specimens are moved in X and Y on the large coaxial stage and brought into focus with knobs on either side, while the binocular head allows viewing with both eyes.
Frequently Asked Questions
Which objectives does the Binocular Upright Metallurgical Microscope use?
Achromatic M4x, M10x and M40x objectives, carried on a quadruple revolving nosepiece with accurate centring and positive click stops.
Which eyepieces are supplied?
Any two from H6x, WF10x and H16x.
What is the light source?
A brightfield vertical illuminator with a 6V–20W halogen lamp, field diaphragm, filter slots and a bulb-centring mechanism.
Related: Microscopes, Monocular Upright Metallurgical Microscope, Trinocular Metallurgical Microscope, Metallurgical and Industrial Inspection Microscope.
For a quotation on the Binocular Upright Metallurgical Microscope, contact Educational Lab Equipments.
